Description:
1.Application:

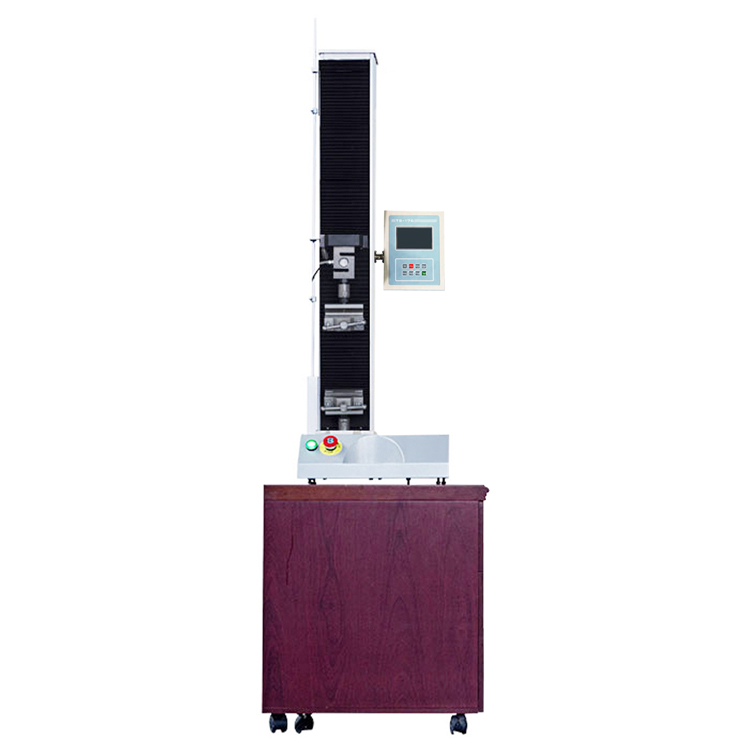

LDS Series (Desktop Type) Single Column Digital Display Electronic Universal Testing Machine uses high strength
light bars to fix the upper beam and the worktable to form a highly rigid frame structure.
It is driven by the motor. The motor drives the beam to move up and down through a transmission mechanism
to realize the test loading process.
The tensile and compression space is relatively large and the column spacing is small.
The LCD screen display is adopted. Accuracy Class 1.
This product is used for testing mechanical properties of various metals, nonmetals and composite materials.
It is suitable for manufacturing industries such as metals,adhesives,pipes,profiles,aerospace,petrochemical industry,
waterproof coiled materials, wires and cables, textiles, fibers, rubber, ceramics, food, medical packaging, geotextiles,
films, paper and other manufacturing industries as well as product quality supervision departments at all levels.
It is also suitable for teaching demonstration work in colleges and universities.
2.Technical Parameter:
Model | LDS-01 | LDS-05 | LDS-1 | LDS-2 | LDS-3 | LDS-5 |
Max. Test Force | 100 N | 500 N | 1 KN | 2 KN | 3 KN | 5 KN |
Accuracy | Class 1 |
Measurement Range | 2% ~ 100%FS |
Measurement Accuracy | Load Cell + LDS Display 0.5% |
Unit Display | N, KN |
Resolution | 1 / 50000 |
Displacement Resolution | 0.01 mm |
Control System | Test Speed 0 ~ 300 mm/min |
Data Sampling Frequency | 200 Times/Sec |
Effective Tensile Space | 0 ~ 650 mm |
Effective Compression Space | 0 ~ 650 mm |
