Description:
1.Functions and Features:

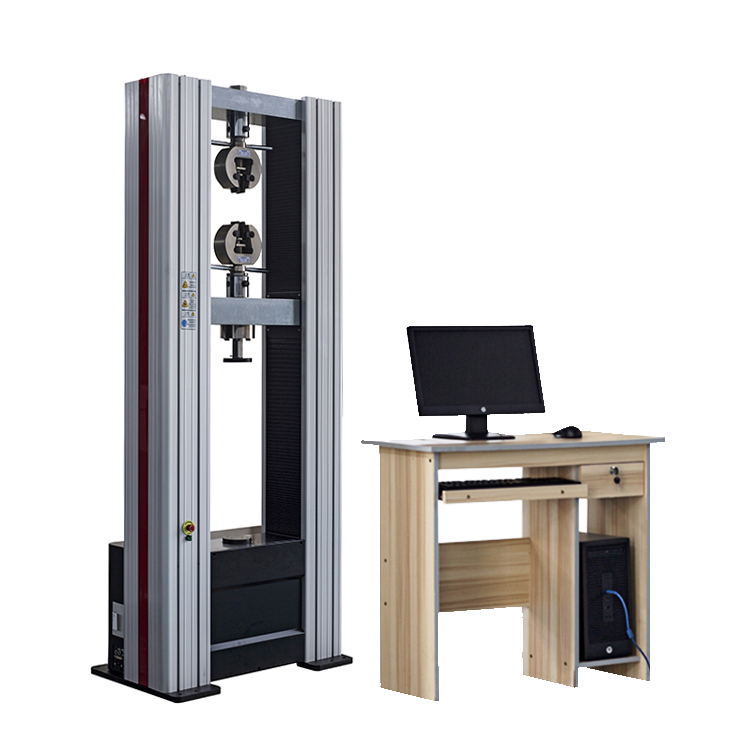

WDW Series Computer Control Electronic Universal Testing Machine is mainly used for testing mechanical
performance indexes of various metals, nonmetals and composite materials such as tensile, compression,
bending, shearing, peeling, tearing, etc. The system adopts microcomputer closed-loop control, has a wide
and accurate loading speed and force measuring range, and has higher accuracy and sensitivity in the
measurement and control of load and displacement.
The equipment is suitable for manufacturing industries such as metals, adhesives, pipes, profiles, aerospace,
petrochemical industry, waterproof coiled materials, wires and cables, textiles, fibers, rubber, ceramics, food,
medical packaging, geotextiles, films, wood, paper and other manufacturing industries as well as product
quality supervision departments at all levels.
It is also suitable for teaching demonstration work in colleges and universities.
2.Technical Parameter:
Model | WDW-30 |
Max. Load | 30 KN (3 TON) |
Structure | 6 Columns |
Accuracy | Class 1 |
Testing Range | 2%~100%FS |
Measuring Accuracy | Better Than ±1% of The Indicator |
Resolution of Effort | 1/300000 of The Full Scale |
Displacement Accuracy | ±1% |
Displacement Resolution | 0.001 mm |
Displacement Error | Within ±1% of Indicator |
Deformation Resolution | 0.001 mm |
Deformation Relative Error | Within ±1% |
Displacement Control Speed Range | 0.001~500 mm/min |
Max. Stroke Of Crosshead | 1000 mm |
Max. Tensile Space | 800 mm |
Max. Compression Space | 800 mm |
Max. Test Width | 400 mm |
Tensile Test Round Jaw | Φ 4~20 mm |
Tensile Test Flat Jaw | 0~20 mm |
Compression Plate | Φ 100 mm |
