Description:
1.Product Description:

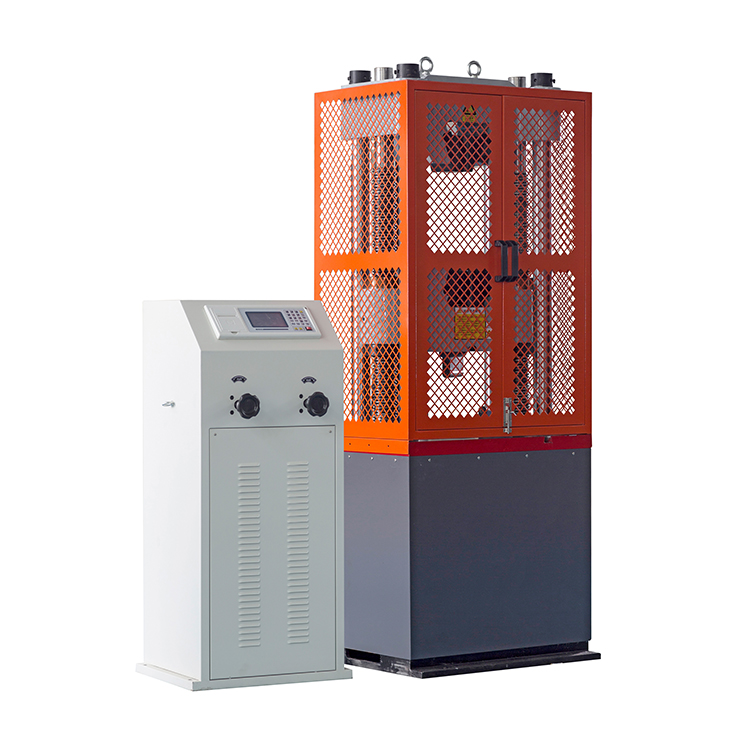

WES-300D Digital Display Hydraulic Universal Testing Machine is mainly used for mechanical properties testing
of tensile,compression, bending and shearing of metal materials, to add simple accessories and devices, to test
concrete, concrete, rubber and other products.
The tensile space is located above the main machine. The compression and bending test space is located between
the lower beam and the workbench below the mainframe.
The test machine adopts convenient manual valve for open-loop test control, drives precision gap seal hydraulic
cylinder, completes tensile, compression, bending and other performance tests on the sample.
The operation is direct, fast and efficient, and meets the requirements of national standards.
2.Technical Parameter:
Model | WES-300D |
Structure | 6 Columns |
Max. Test Force | 300 kN |
Test Force Measurement Range | 2%~100% |
Test Force Indication Relative Error | 1% Of The Indicated Value |
Max. Piston Stroke | 150 mm |
Max. Moving Speed Of The Piston | 80 mm/min |
Test Space Adjustment Speed | 120 mm/min |
Max. Tensile Test Space | 650 mm |
Max. Compression Test Space | 600 mm |
Column Clearance | 480 mm |
Clamping Method | Hydraulic Automatic Clamping |
Tensile Fixture | Round Sample Clamping Range | Φ4-32 mm |
Flat Sample Clamping Thickness Range | 0-30 mm |
Flat Sample Clamping Width | 70 mm |
Compression Fixture | Compression Plat Size | Φ150 mm |
3 Point Of Bending Fixture | Roller Diameter | Φ30 mm |
Span For Roller | 450 mm |
Roller Width | 140 mm |
Allowable Bending Length | 100 mm |
