Description:
1.Product Description:

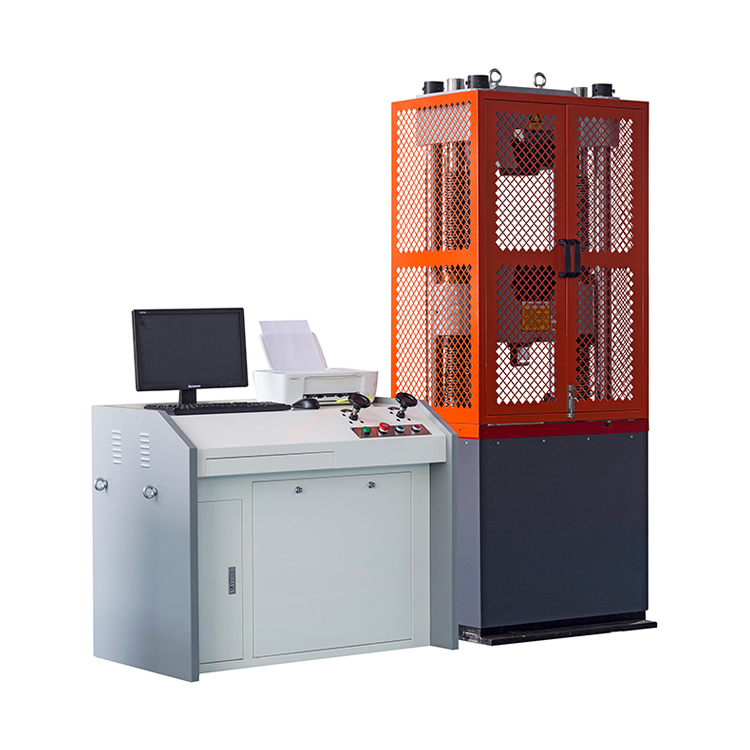

WEW-300D Computer Display Hydraulic Universal Testing Machine adopts the structure of the main engine with
the lower cylinder, which is mainly used for tensile, compression and bending tests of metal materials, non-metal
materials, product parts, components, structural parts and standard parts.
This series of testing machines can also do tensile, compressive and bending tests of materials in this environment
if equipped with environmental devices. For example, high temperature tensile test, low temperature tensile test
and compression test.
Applicable to iron and steel, metallurgy, building materials, quality inspection centers, water conservancy and
hydropower, roads and bridges, scientific research institutes, colleges and universities, mechanics and other factories,
mining enterprises and testing scientific research institutions.
2.Technical Parameter:
Model | WEW-300D |
Structure | 6 Columns |
Max. Test Force | 300 kN |
Test Force Measurement Range | 2%~100% |
Test Force Indication Relative Error | 1% Of The Indicated Value |
Max. Piston Stroke | 150 mm |
Max. Moving Speed Of The Piston | 80 mm/min |
Test Space Adjustment Speed | 120 mm/min |
Max. Tensile Test Space | 650 mm |
Max. Compression Test Space | 600 mm |
Column Clearance | 480 mm |
Clamping Method | Hydraulic Automatic Clamping |
Tensile Fixture | Round Sample Clamping Range | Φ4-32 mm |
Flat Sample Clamping Thickness Range | 0-30 mm |
Flat Sample Clamping Width | 70 mm |
Compression Fixture | Compression Plat Size | Φ150 mm |
3 Point Of Bending Fixture | Roller Diameter | Φ30 mm |
Span For Roller | 450 mm |
Roller Width | 140 mm |
Allowable Bending Length | 100 mm |
