Description:
1.Product Description:

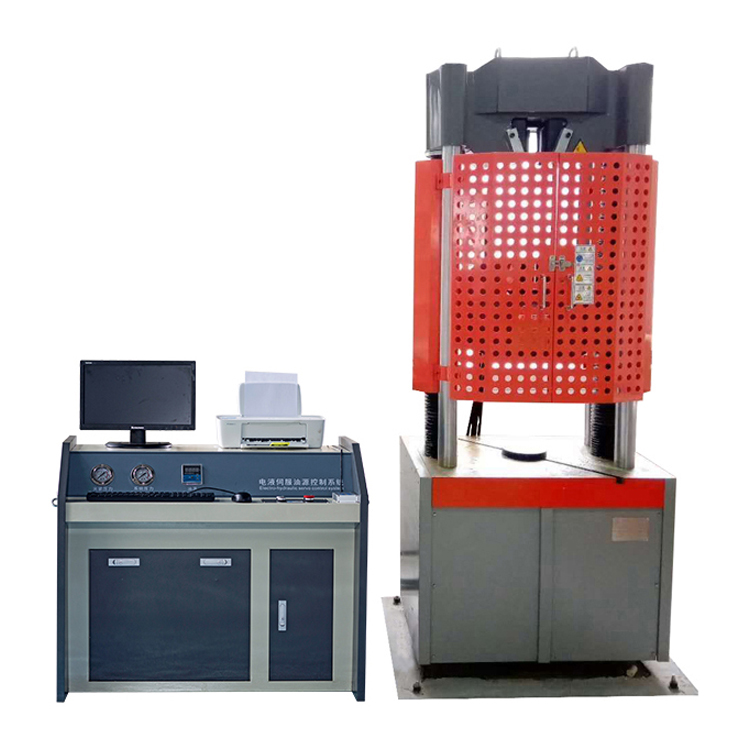

WAW-1000D Computer Control Electro-Hydraulic Servo Hydraulic Universal Testing Machine adopts a cylinder-mounted
mainframe structure, which is mainly used for the mechanical properties testing in tensile, compression, bending, etc. of
metal materials, non-metal materials, product parts, components, structural parts, standard parts.
This machine can also used for material tensile, compression and bending tests in this environment if the environmental
device is added. For example: high temperature tensile, low temperature tensile, compression and other tests.
It is applicable to iron and steel, metallurgy, building materials, quality inspection centers, water conservancy and hydropower,
highway bridges, research institutes, colleges and universities mechanics and other factories and mines and testing and
research institutions.
2.Technical Parameter:
Model | WAW-1000D |
Structure | 6 Columns |
Max. Test Force | 1000 kN |
Test Force Measurement Range | 2%~100% |
Test Force Indication Relative Error | 1% Of The Indicated Value |
Constant Velocity Control Range | 0.00025/s~0.0025/s |
Constant Velocity Stress Control Range | 2~60 N/mm2·S-1 |
Constant Velocity Displacement Control Range | 0.5~50 mm/min |
Max. Piston Stroke | 200 mm |
Max. Moving Speed Of The Piston | 80 mm/min |
Test Space Adjustment Speed | 150 mm/min |
Max. Tensile Test Space | 620 mm |
Max. Compression Test Space | 550 mm |
Column Clearance | 540 mm |
Clamping Method | Hydraulic Automatic Clamping |
Tensile Fixture | Round Sample Clamping Range | Φ6-60 mm |
Flat Sample Clamping Thickness Range | 0-40 mm |
Flat Sample Clamping Width | 80 mm |
Compression Fixture | Compression Plat Size | Φ205 mm |
3 Point Of Bending Fixture | Roller Diameter | Φ40 mm |
Span For Roller | 450 mm |
Roller Width | 140 mm |
Allowable Bending Length | 100 mm |
