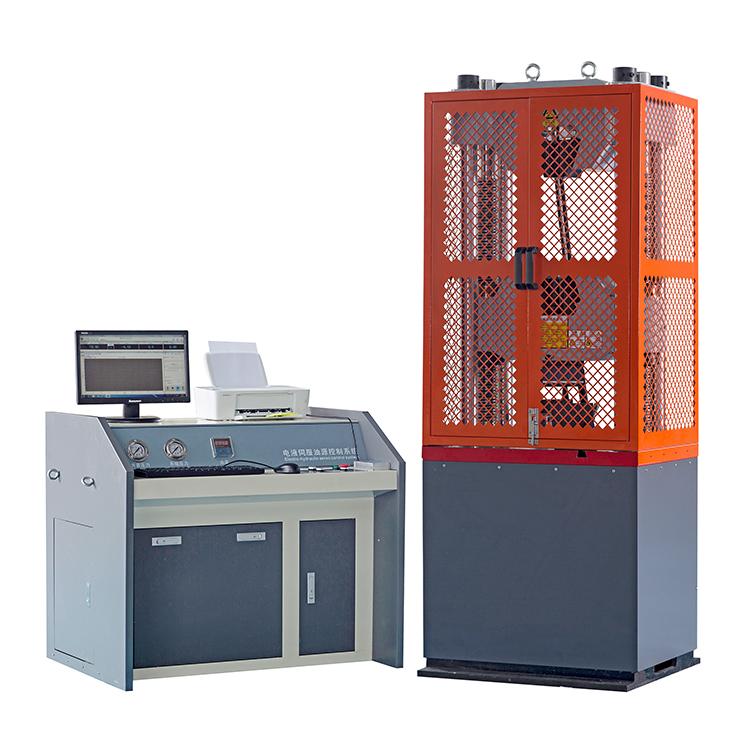

WAW-600D Computer Control Electro-Hydraulic Servo Hydraulic Universal Testing Machine

1.Product Description:

WAW-600D Computer Control Electro-Hydraulic Servo Hydraulic Universal Testing Machine adopts a cylinder-mounted

mainframe structure, which is mainly used for the mechanical properties testing in tensile, compression, bending, etc. of

metal materials, non-metal materials, product parts, components, structural parts, standard parts.

This machine can also used for material tensile, compression and bending tests in this environment if the environmental

device is added. For example: high temperature tensile, low temperature tensile, compression and other tests.

It is applicable to iron and steel, metallurgy, building materials, quality inspection centers, water conservancy and hydropower,

highway bridges, research institutes, colleges and universities mechanics and other factories and mines and testing and

research institutions.

2.Technical Parameter:

Model		WAW-600D
Structure		6 Columns
Max. Test Force		600 kN
Test Force Measurement Range		2%~100%
Test Force Indication Relative Error		1% Of The Indicated Value
Constant Velocity Control Range		0.00025/s~0.0025/s
Constant Velocity Stress Control Range		2~60 N/mm2·S-1
Constant Velocity Displacement Control Range		0.5~50 mm/min
Max. Piston Stroke		150 mm
Max. Moving Speed Of The Piston		80 mm/min
Test Space Adjustment Speed		120 mm/min
Max. Tensile Test Space		650 mm
Max. Compression Test Space		600 mm
Column Clearance		480 mm
Clamping Method		Hydraulic Automatic Clamping
Tensile Fixture	Round Sample Clamping Range	Φ6-40 mm
	Flat Sample Clamping Thickness Range	0-30 mm
	Flat Sample Clamping Width	80 mm
Compression Fixture	Compression Plat Size	Φ150 mm
3 Point Of Bending Fixture	Roller Diameter	Φ30 mm
	Span For Roller	450 mm
	Roller Width	140 mm
	Allowable Bending Length	100 mm

Computer Control Type
