Description:
1.Product Description:

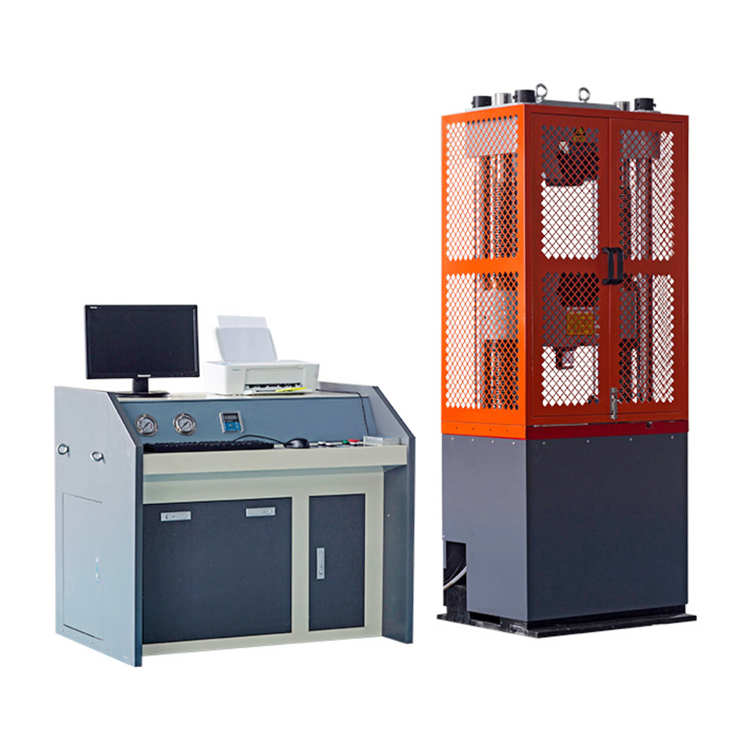

WAW-300D Computer Control Electro-Hydraulic Servo Hydraulic Universal Testing Machine adopts a cylinder-mounted
mainframe structure, which is mainly used for the mechanical properties testing in tensile, compression, bending, etc. of
metal materials, non-metal materials, product parts, components, structural parts, standard parts.
This machine can also used for material tensile, compression and bending tests in this environment if the environmental
device is added. For example: high temperature tensile, low temperature tensile, compression and other tests.
It is applicable to iron and steel, metallurgy, building materials, quality inspection centers, water conservancy and hydropower,
highway bridges, research institutes, colleges and universities mechanics and other factories and mines and testing and
research institutions.
2.Technical Parameter:
Model | WAW-300D |
Structure | 6 Columns |
Max. Test Force | 300 kN |
Test Force Measurement Range | 2%~100% |
Test Force Indication Relative Error | 1% Of The Indicated Value |
Constant Velocity Control Range | 0.00025/s~0.0025/s |
Constant Velocity Stress Control Range | 2~60 N/mm2·S-1 |
Constant Velocity Displacement Control Range | 0.5~50 mm/min |
Max. Piston Stroke | 150 mm |
Max. Moving Speed Of The Piston | 80 mm/min |
Test Space Adjustment Speed | 120 mm/min |
Max. Tensile Test Space | 650 mm |
Max. Compression Test Space | 600 mm |
Column Clearance | 480 mm |
Clamping Method | Hydraulic Automatic Clamping |
Tensile Fixture | Round Sample Clamping Range | Φ4-32 mm |
Flat Sample Clamping Thickness Range | 0-30 mm |
Flat Sample Clamping Width | 70 mm |
Compression Fixture | Compression Plat Size | Φ150 mm |
3 Point Of Bending Fixture | Roller Diameter | Φ30 mm |
Span For Roller | 450 mm |
Roller Width | 140 mm |
Allowable Bending Length | 100 mm |
