Description:
1.Performance Description:

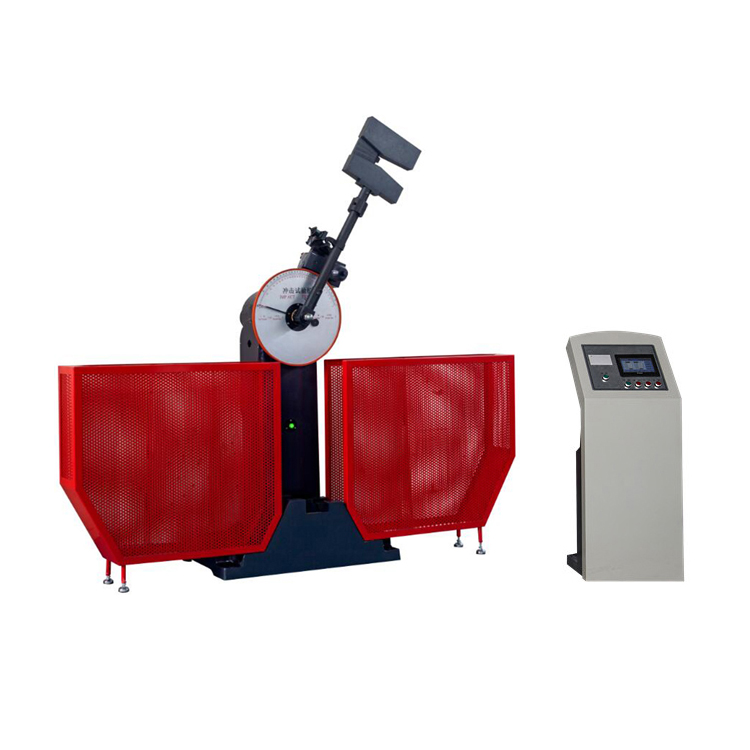

JBS-500B Digital Display Semi-automatic Charpy Pendulum Impact Testing Machine is used to measure
the impact resistance of metal materials under dynamic load, so as to judge the quality status of materials
under dynamic load.
It is semi-automatic control testing machine, digital display type operation is simple and high working
efficiency, electric control of swing, impact and swing, and can use the surplus energy of thrust sample
after automatic swing place ready for the next test, especially for continuous do impact test lab and a lot
to do impact test, metallurgy, machinery manufacturing and other industries.
2.Technical Parameter:
Model | JBS-500B |
Display Way | Digital Display |
Impact Energy | 500J / 250J |
Impact Speed | 5.2 m/s |
Pendulum Pre-lifting Angle | 150° |
Angle Accuracy | 0.1° |
Span of Sample Support | 40 mm |
Round Corner of Support Jaw | R1.0~1.5 mm |
Fillet of Impact Blade | R2.0~2.5 mm (R8mm) |
Distance From Pendulum Center To Impact Point | 800 mm |
Standard Sample Size | 10×10 (7.5 or 5) ×55 mm |
Pendulum Moment | 0~500J: M=267.9492 N.m 0~250J: M=133.9746 N.m |
