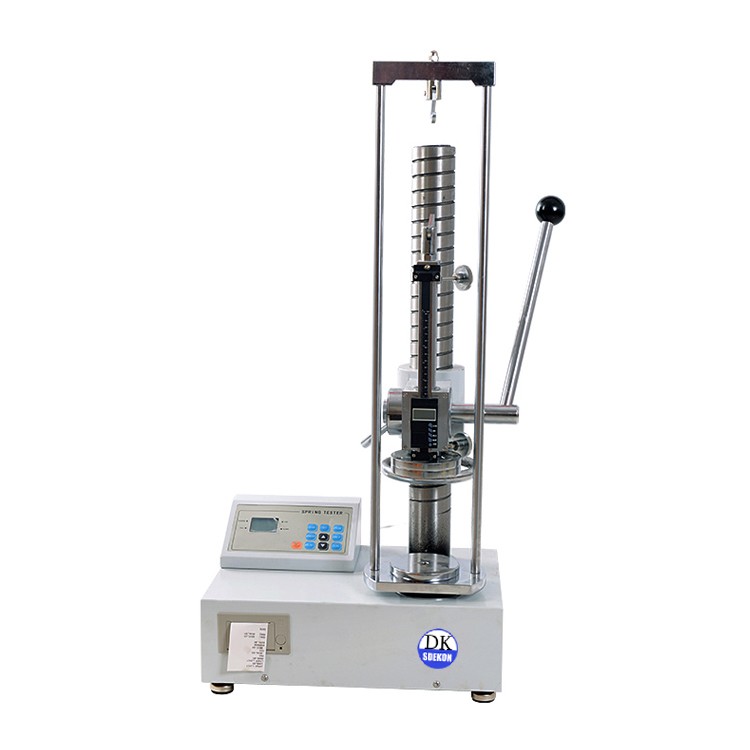

SDEKON ATH-1000 To ATH-5000 Digital Spring Extension Compression Testing Machine
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
SDEKON ATH Series Digital Spring Extension Compression Testing Machine is used to test amount
of deformation and characteristic of load relation of extension and compression springs.
It can be applied to the testing of working load of extension and compression springs under certain
working length. Advanced and highly integrated chip microprocessor is adopted by this machine,
which also has liquid crystal display and metal enclosure.
2.Technical Parameter:
Model | Without Printer | ATH-1000 | ATH-2000 | ATH-3000 | ATH-5000 |
With Printer | ATH-1000P | ATH-2000P | ATH-3000P | ATH-5000P | |
Max. Test Load | 1000 N | 2000 N | 3000 N | 5000 N | |
Min. Resolution | 0.1 N | ||||
0.01 Kg | |||||
0.01 Lb | |||||
Length Of Travel Of Displacement Scale | 150 mm | ||||
Division Value Of Displacement Scale | 0.01 mm | ||||
Platen Diameter | 108 mm | ||||
Max. Free Length Of Measurable Spring | 200 mm | ||||
Indication Error | ±1% | ||||
Working Temperature | 20±10℃ |
