1.Application:

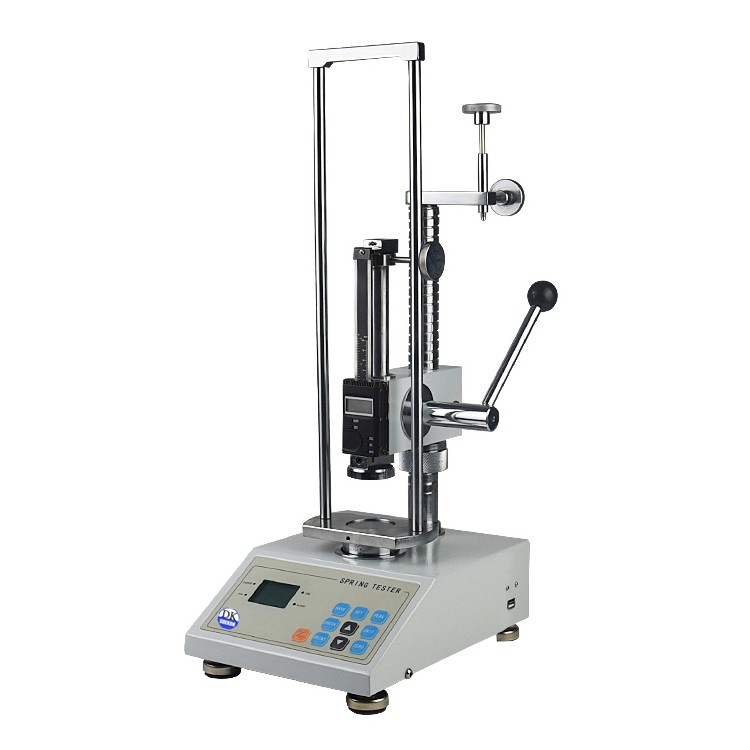

SDEKON ATH Series Digital Spring Extension Compression Testing Machine is used to test amount
of deformation and characteristic of load relation of extension and compression springs.
It can be applied to the testing of working load of extension and compression springs under certain
working length. Advanced and highly integrated chip microprocessor is adopted by this machine,
which also has liquid crystal display and metal enclosure.
2.Technical Parameter:
Model | Without Printer | ATH-50 | ATH-100 | ATH-150 | ATH-200 | ATH-300 | ATH-500 |
With Printer | ATH-50P | ATH-100P | ATH-150P | ATH-200P | ATH-300P | ATH-500P | |
Max. Test Load | 50 N | 100 N | 150 N | 200 N | 300 N | 500 N | |
Min. Resolution | 0.001 N | 0.01 N | |||||
0.0001 Kg | 0.001 Kg | ||||||
0.0001 Lb | 0.001 Lb | ||||||
Length Of Travel Of Displacement Scale | 90 mm | ||||||
Division Value Of Displacement Scale | 0.01 mm | ||||||
Platen Diameter | 48 mm | ||||||
Max. Free Length Of Measurable Spring | 150 mm | ||||||
Indication Error | ±1% | ||||||
Working Temperature | 20±10℃ |
