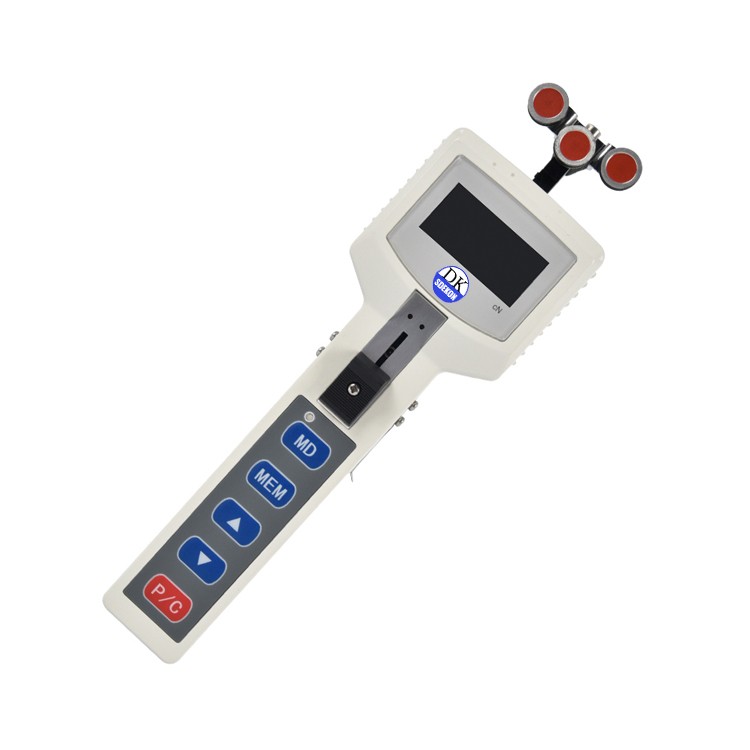

SDEKON AZSH Series Handheld Digital Tension Meter
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
SDEKON AZSH Series Handheld Digital Tension Meter is a portable electronic digital measuring instrument.
It can measure tension force of filamentou, linear material, widely used in wire and cable, tensile chemical
fiber, metal wire, carbon fiber and other industries.
It can measure the tension force and process data accurately.
2.Technical Parameter:
Model | AZSH-200 | AZSH-500 | AZSH-1000 | AZSH-2000 |
Tension Range | 4~200cN | 10~500cN | 20~1000cN | 40~2000cN |
Measuring Head Width | 65mm | |||
Calibration Material Textile PA Monofilament | Φ0.12mm | Φ0.12~0.20mm | Φ0.20~0.40mm | Φ0.40~0.70mm |
Model | AZSH-2500 | AZSH-5000 | AZSH-10000 |
Tension Range | 50~2500cN | 100~5000cN | 200~10000cN |
Measuring Head Width | 116mm | ||
Calibration Material Textile PA Monofilament | Φ0.40~0.70mm | Φ0.60~1.20mm | Φ0.80~1.40mm |
