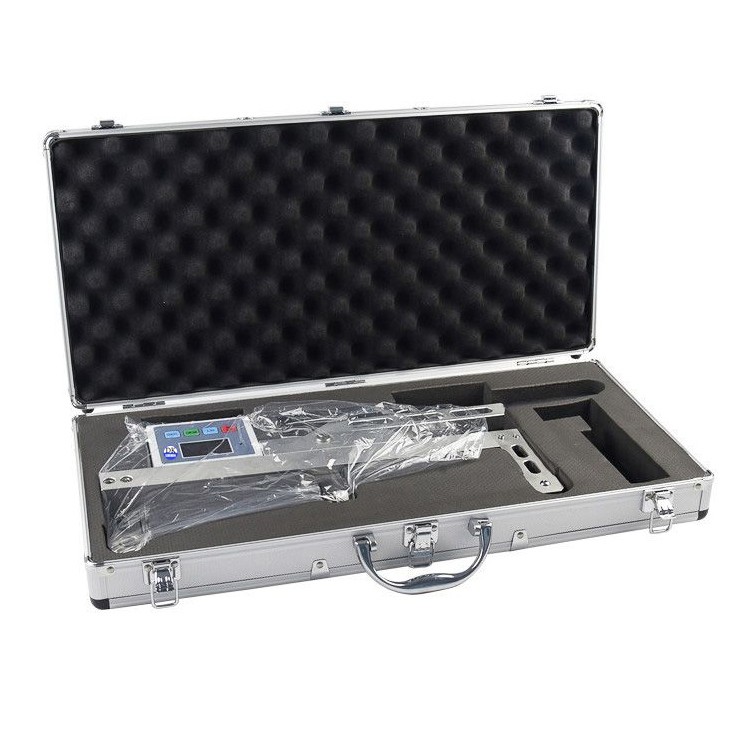

SDEKON AZGH Series Digital Rope Tension Meter
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
SDEKON AZGH Series Digital Rope Tension Meter is an on-line measurement of wire and cable, fiber
and rope tension equipment.
Suitable for high-speed rail industry, power industry, communications industry, transportation industry,
construction industry, playground, etc., involving wire rope tension measurement when used.
Also applies to the major scientific research institutions, testing organizations and other occasions.
2.Technical Parameter:
2.1.Copper Strand Tension Meter Specification Table:
Model | AZGH-A-5000G | |
Tested Rope | Rope Diameter | Full Measuring Range |
Number 1 | Φ7.5 mm | 5000 N |
Number 2 | Φ9 mm | 5000 N |
Number 3 | Φ10.5 mm | 5000 N |
Model | AZGH-B-5000G | |
Tested Rope | Rope Diameter | Full Measuring Range |
Number 1 | Φ10.5 mm | 5000 N |
Number 2 | Φ12.5 mm | 5000 N |
Number 3 | Φ14 mm | 5000 N |
Model | AZGH-C-5000G | |
Tested Rope | Rope Diameter | Full Measuring Range |
Number 1 | Φ12.5 mm | 5000 N |
Number 2 | Φ14 mm | 5000 N |
Number 3 | Φ16 mm | 5000 N |
2.2.Steel Wire Rope Tension Meter Specification Table:
Model | AZGH-A-5000S | |
Tested Rope | Rope Diameter | Full Measuring Range |
Number 1 | Φ6 mm | 5000 N |
Number 2 | Φ8 mm | 5000 N |
Number 3 | Φ10 mm | 5000 N |
Model | AZGH-B-5000S | |
Tested Rope | Rope Diameter | Full Measuring Range |
Number 1 | Φ10 mm | 5000 N |
Number 2 | Φ11 mm | 5000 N |
Number 3 | Φ13 mm | 5000 N |
Model | AZGH-C-5000S | |
Tested Rope | Rope Diameter | Full Measuring Range |
Number 1 | Φ11 mm | 5000 N |
Number 2 | Φ13 mm | 5000 N |
Number 3 | Φ16 mm | 5000 N |
Scoring Value: 1N
Accuracy: ±5%
Power Supply: 7.2V Ni-MH Battery Pack
Charger: Input: AC 100~240V, 50Hz; Output: DC 12V 500mA
Sampling Rate: 10Hz
