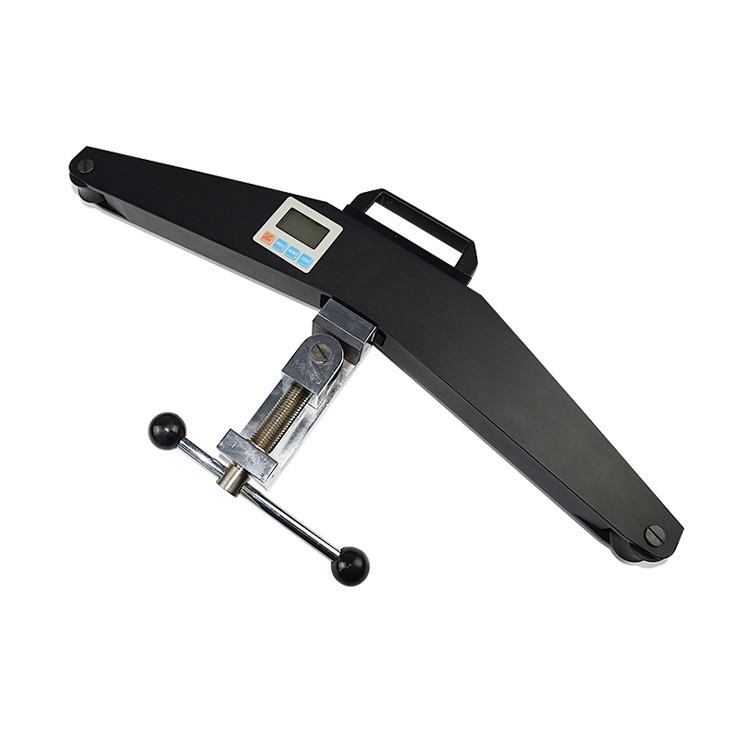

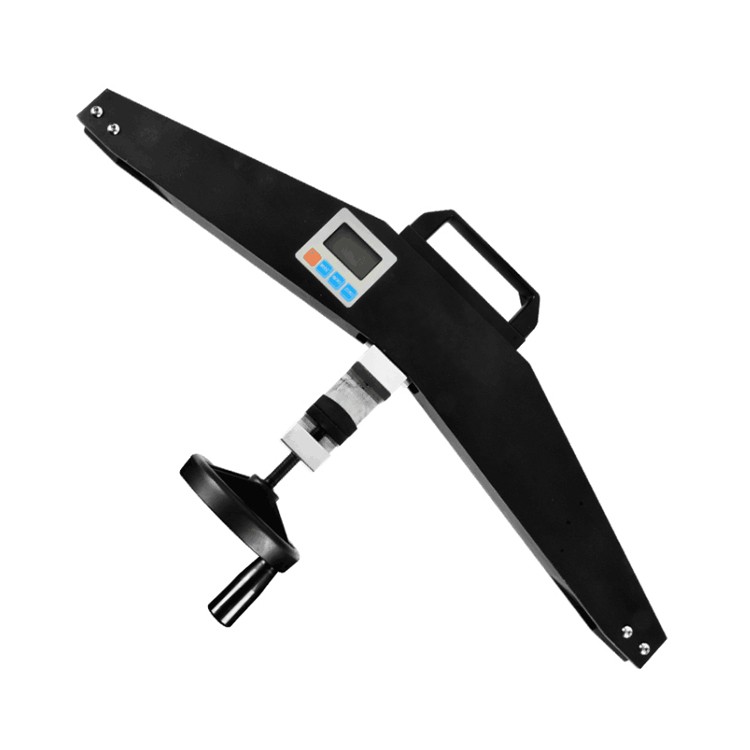

SDEKON ASZ Series Digital Wire Rope Tension Meter
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
SDEKON ASZ Series Digital Wire Rope Tension Meter can be applied to various occasions, such as power
industry, telecommunications industry, transportation industry, glass curtain wall decoration, cable way
industry, construction industry, pleasure grounds, tunnel construction, fishing, major research institutions
and teaching institutions, testing institutions and other occasions involved with the tension of ropes and
steel wire ropes.
2.Technical Parameter:
Model | ASZ-20 | ASZ-50 | ASZ-100 | ASZ-200 | |
Max. Load Value | 20 KN | 50 KN | 100 KN | 200 KN | |
Load Division Value | 0.01 KN | 0.1 KN | |||
Output Connector | RS232 9-Hole Socket | ||||
Power | Rechargeable Battery Charger (Charging Voltage 100V~240V) | ||||
Working Temperature | 5℃~35℃ | ||||
Transport Temperature | -10℃~60℃ | ||||
Relative Humidity | 15%~80%RH | ||||
Working Environment | No Vibration Focus and Corrosive Media Around | ||||
3.Cable Number Selection Standard Correspondence Table:
ASZ-20 | ASZ-50 | ASZ-100 | ASZ-200 | ||||
Number | Diameter | Number | Diameter | Number | Diameter | Number | Diameter |
1 | Φ 6 | 1 | Φ 12 | 1 | Φ 20 | 1 | Φ 26 |
2 | Φ 8 | 2 | Φ 14 | 2 | Φ 22 | 2 | Φ 28 |
3 | Φ 9 | 3 | Φ 16 | 3 | Φ 24 | 3 | Φ 30 |
4 | Φ 10 | 4 | Φ 18 | 4 | Φ 26 | 4 | Φ 32 |
5 | Φ 12 | 5 | Φ 20 | 5 | Φ 28 | 5 | Φ 34 |
6 | Φ 14 | 6 | Φ 22 | 6 | Φ 30 | 6 | Φ 36 |
7 | Φ 16 | 7 | Φ 24 | 7 | Φ 32 | 7 | Φ 38 |
8 | Φ 18 | 8 | Φ 26 | 8 | Φ 34 | 8 | Φ 40 |
