Description:
1.Application:

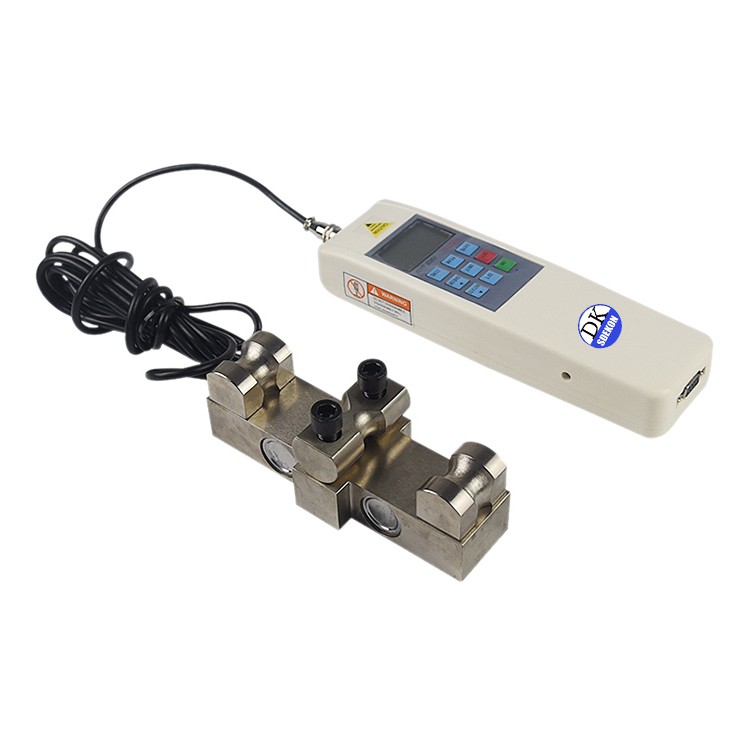

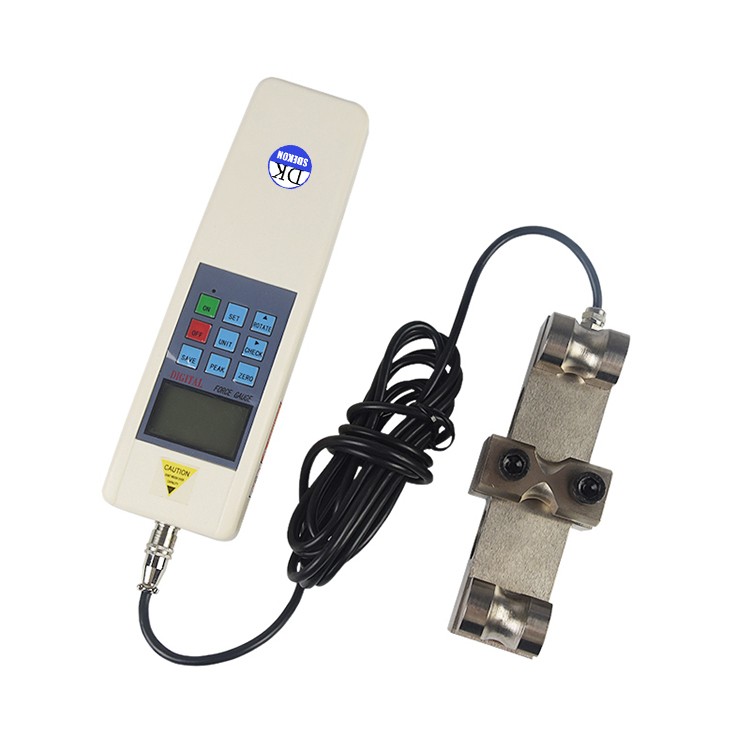

SDEKON HD Series Digital Pressuremeter Tension Tester is a kind of special equipment to measure wind
towers, signal transmission and power transmission systems rope tension.
It has characters of high precision, easy to operate, easy to carry, etc. also it has many kinds of test modes,
convenient to testing. Users can also input gravity acceleration value to make the test more accurately.
2.Technical Parameter:
Type / Specification | HD-1T | HD-2T | HD-5T | HD-10T | HD-20T |
Max. Load Value | 10 KN | 20 KN | 50 KN | 100 KN | 200 KN |
Load Division Value | 0.01 KN | 0.1 KN |
0.001 Mg | 0.01 Mg |
0.001 Klb | 0.01 Klb |
Error Of Indication | ±0.5% |
Accuracy | According To The Ropes Characteristics Of Different Forms. Precision Is The 2%-6% Of The Full Range. |
Unit | N(KN), Kg(Mg or T), Lb(Klb) |
Output Interface | RS232 Nine Holes Socket |
Power | Rechargeable Batteries, Battery Voltage (100V-240V) |
Sensor Structure | High Precision S Type Or Cylinder Shape Sensor (External Sensor) |
