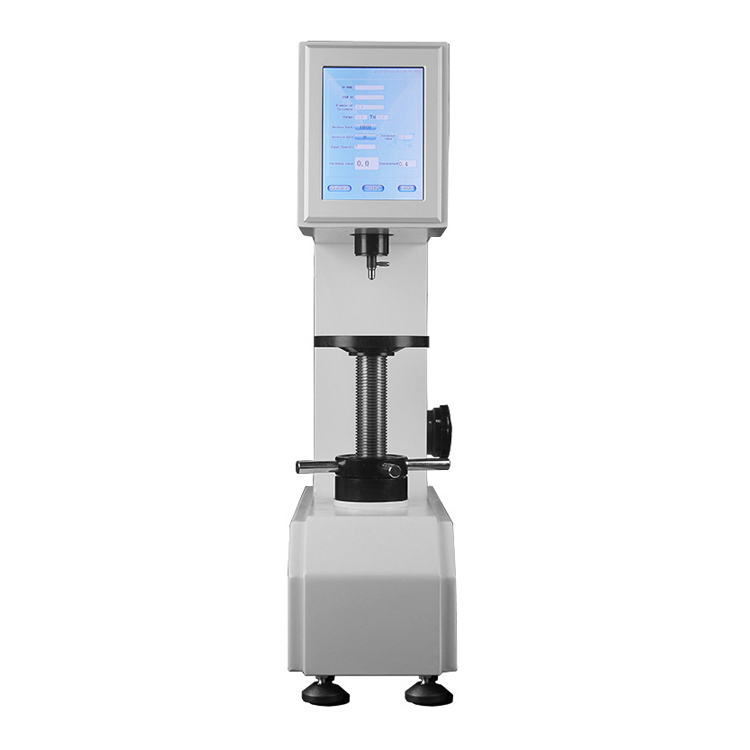

HR-150DT-P Touch Screen Digital Display Plastic Rockwell Hardness Tester
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
HR-150DT-P Touch Screen Digital Display Plastic Rockwell Hardness Tester specializes in testing the
rockwell hardness of non-metallic materials, such as plastics, hard rubbers, synthetic resins, friction
materials and softer metals.
It uses the weights electric loading, high precision sensor. Touch screen interface, easy to operate.
Test results can be stored, processed and printed automatically.
2.Technical Parameter:
Model | HR-150DT-P |
Initial Test Force | 10Kgf (98.07N) |
Total Test Force | 60Kgf (588N); 100Kgf (980N); 150Kgf (1471N) |
Hardness Scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
Measuring Range | HRE:70-100, HRL:100-120, HRM:85-110, HRR:114-125 |
Hardness Value Resolution | 0.1HR |
Test Force Error | ＜1% |
Dwell Time | 0~99s |
Max. Height Of Sample | 200mm |
Distance From Indenter To The Wall | 200mm |
Data Display Output | Touch Screen Display Readout, Can Store 20 Test Results, Built-in Printer, RS-232 Interface |
Standards Compliant | GB/T230.2, GB/T3398.2, JB/T7409 |
