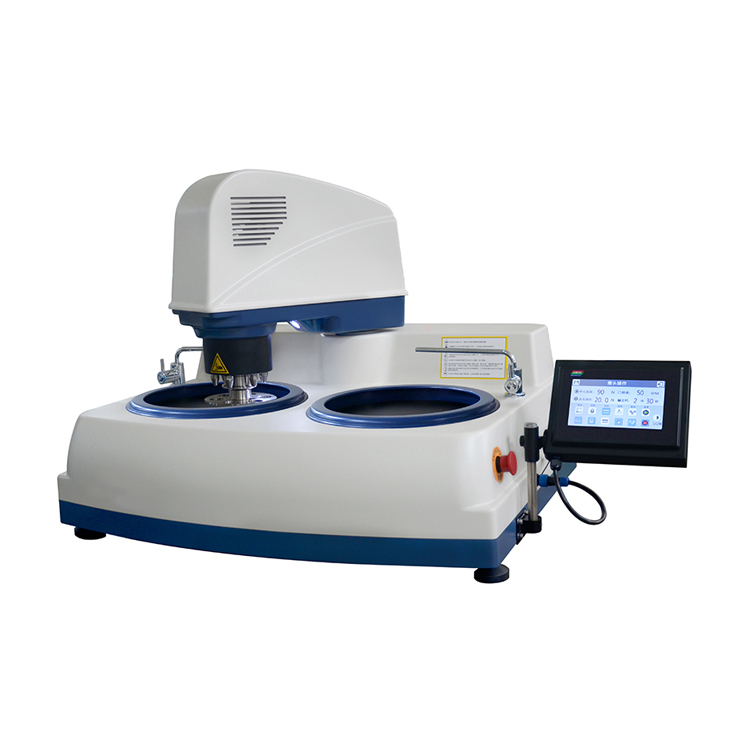

SDEKON MP-2SZT Touch Screen Digital Display Automatic Metallographic Grinding Polishing Machine
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
SDEKON MP-2SZT Touch Screen Digital Display Automatic Metallographic Grinding Polishing Machine
is a single-chip microcomputer controlled grinding and polishing machine.
The shell is formed with ABS material, which is beautiful in appearance, anti-corrosion and durable.
It is stepless speed control and can change the rotational direction.
The grinding head has individual pressure and central pressure two methods.
2.Technical Parameter:
Model | MP-2SZT (250mm) | MP-2SZT (300mm) |
Disc Diameter | Φ 254 mm | Φ 300 mm |
Abrasive Paper Diameter | Φ 250 mm | Φ 300 mm |
Rotating Speed | Stepless Speed: 100~1000 r/min | |
Rotational Direction | Clockwise or Counterclockwise | |
Head Speed | Stepless Speed 20~120 r/min | |
Timing Set | 0~99 min | |
Sample Holding QTY | 6 PCS | |
Sample Holder Specification | Φ25mm or Φ30mm or Φ40mm (Only Choose One) | |
Pressure Method | Individual Pressure or Central Pressure | |
Individual Pressure Force | 0~50 N | |
Central Pressure Force | 0~160 N | |
Control and Display | With Automatic Locking Of The Grinding Head, 7 Inch LCD Touch Screen, With Washing Function |
