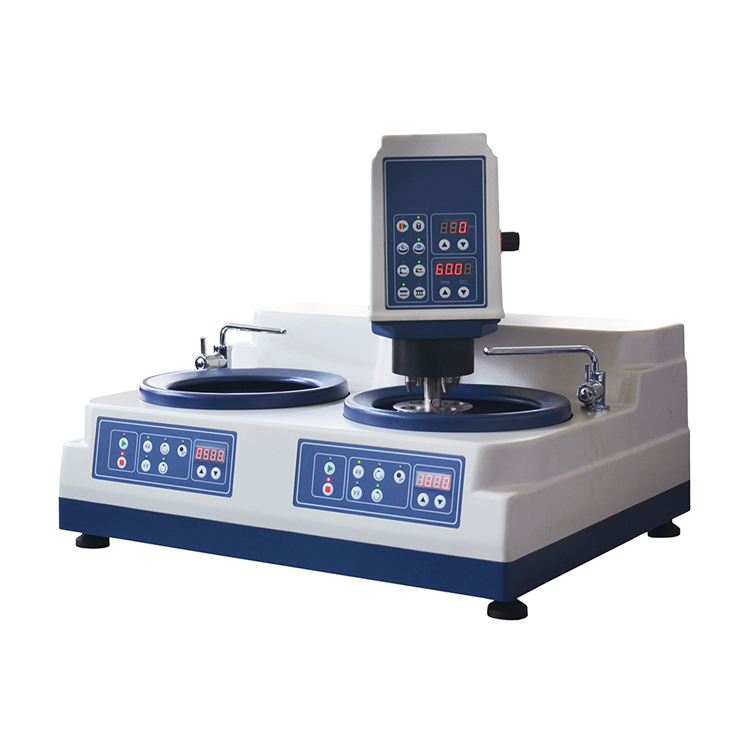

SDEKON MP-2SZ Digital Display Automatic Metallographic Sample Grinding and Polishing Machine

1.Application:

SDEKON MP-2SZ Digital Display Automatic Metallographic Sample Grinding and Polishing Machine is a

single-chip microcomputer controlled grinding and polishing machine.

It has stepless speed or four speed control and can change the rotational direction.

It can adjust the cooling water tube direction for wet grinding.

With washing function at the bottom of the grinding disc, it can prevent accumulation and precipitation

of grinding materials.

With magnetic grinding disc design, it supports for fast disc replacing system.

The disc surface is Teflon painted which makes no residue of changing abrasive paper and polishing cloth.

With the automatic locking and timing function of the grinding head, the operation is safe and convenient.

It is the ideal equipment for the metallographic sample preparation.

2.Technical Parameter:

Model	MP-2SZ
Disc Diameter	Φ 230 mm
Abrasive Paper Diameter	Φ 230 mm
Rotating Speed	Stepless Speed: 100~1000r/min or Four Speed: 250 r/min, 500 r/min, 750 r/min, 1000 r/min
Rotational Direction	Clockwise or Counterclockwise
Head Speed	Stepless Speed 20~120 r/min
Timing Set	0~99 min
Sample Holding QTY	4 PCS
Sample Holder Specification	Φ25mm, Φ30mm, Φ40mm (Only Choose One)
Pressure Method	Individual Air Pressure
Pressure Force	0~60 N
Control and Display	With Automatic Locking Of The Grinding Head, Film Key Operation, Nixie Tube Display, With Washing Function

Metallographic Grinding Polishing Machine
