Description:
1.Application:

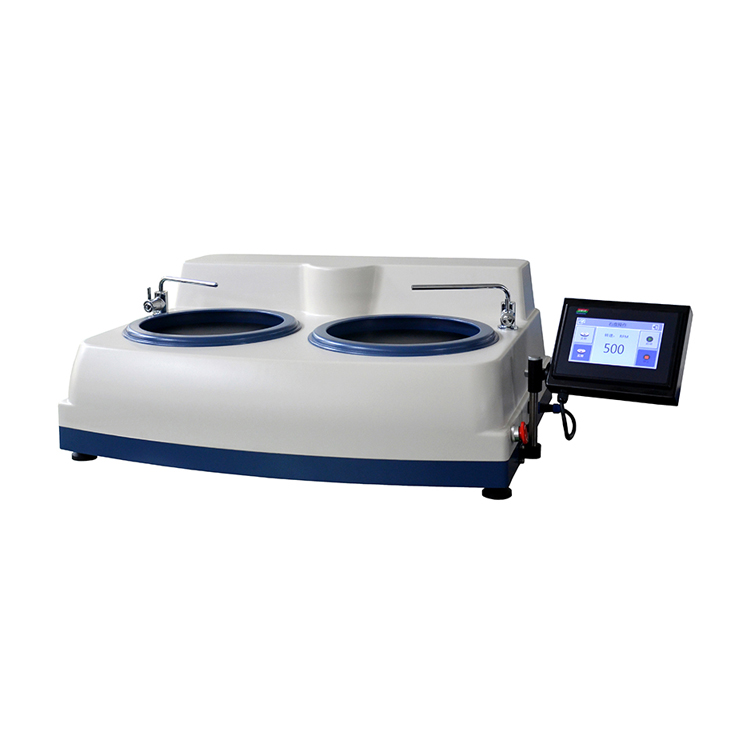

SDEKON MP-2ST Touch Screen Digital Display Metallographic Sample Grinding Polishing Machine is a
single chip microcomputer controlled grinding and polishing machine, two discs are independently
controlled. The shell is formed with ABS material, which is beautiful in appearance, anti-corrosion and
durable. The disc is stepless speed control and can change the rotational direction.
With magnetic grinding disc design, it supports for fast disc replacing system.
The disc surface is Teflon painted which make no residue of changing abrasive paper and polishing cloth.
Equipped with cooling water pipe and solenoid water valve control, it can adjust rotational direction for
wet grinding and automatically open and close the water.
2.Technical Parameter:
Model | MP-2ST (250mm) | MP-2ST (300mm) |
Disc Diameter | Φ 254 mm | Φ 300 mm |
Abrasive Paper Diameter | Φ 250 mm | Φ 300 mm |
Rotating Speed | Stepless Speed: 100~1000 r/min |
Rotational Direction | Clockwise or Counterclockwise |
Control and Display | 7 Inch LCD Touch Screen |
