Metallographic Grinding Polishing Machine

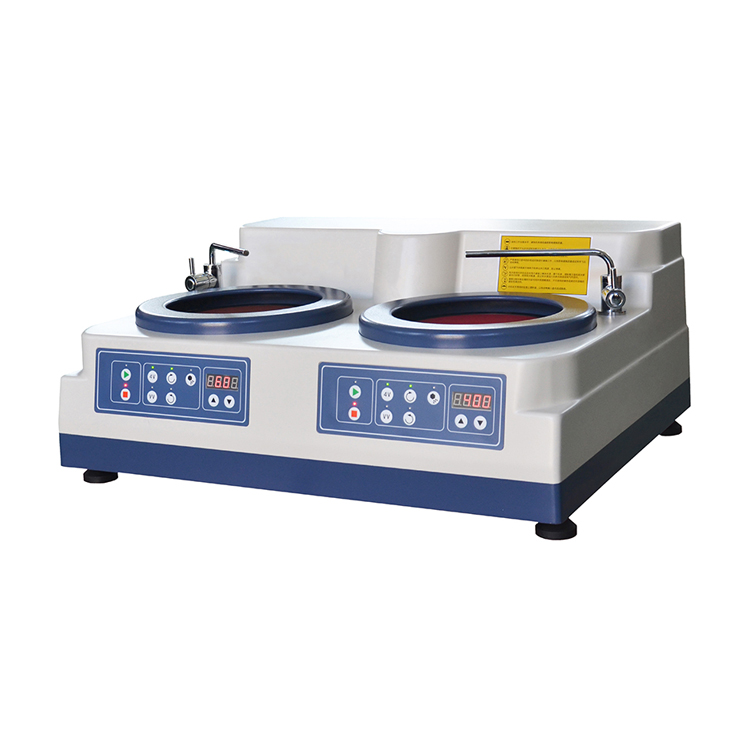

SDEKON MP-2S Digital Display Metallographic Sample Grinding Polishing Machine




EMAIL: james@sdekon.com

SKYPE: james@sdekon.com

WECHAT: +86-18660816838

WHATSAPP: +86-18660816838

MOBILE PHONE: +86-18660816838

1.Application:

SDEKON MP-2S Digital Display Metallographic Sample Grinding and Polishing Machine is a single-chip

microcomputer controlled grinding and polishing machine, two discs are independently controlled.

It has stepless speed or four speed control and can change the rotational direction.

It can adjust the cooling water tube direction for wet grinding.

With washing function at the bottom of the grinding disc, it can prevent the accumulation and precipitation

of grinding materials.

Only need to change the abrasive paper and polishing cloth, it can complete various sample grinding, fine

grinding and polishing process, which is the ideal sample preparation machine in the laboratory.


2.Technical Parameter:

Model

MP-2S

Disc Diameter

Φ 230 mm

Abrasive Paper Diameter

Φ 230 mm

Rotating Speed

Stepless Speed: 100~1400r/min

or Four Speed: 300 r/min, 600 r/min, 900 r/min, 1400 r/min

Rotational Direction

Clockwise or Counterclockwise

Control and Display

Film Key Operation, Nixie Tube Display,

With Washing Function
