1.Application:

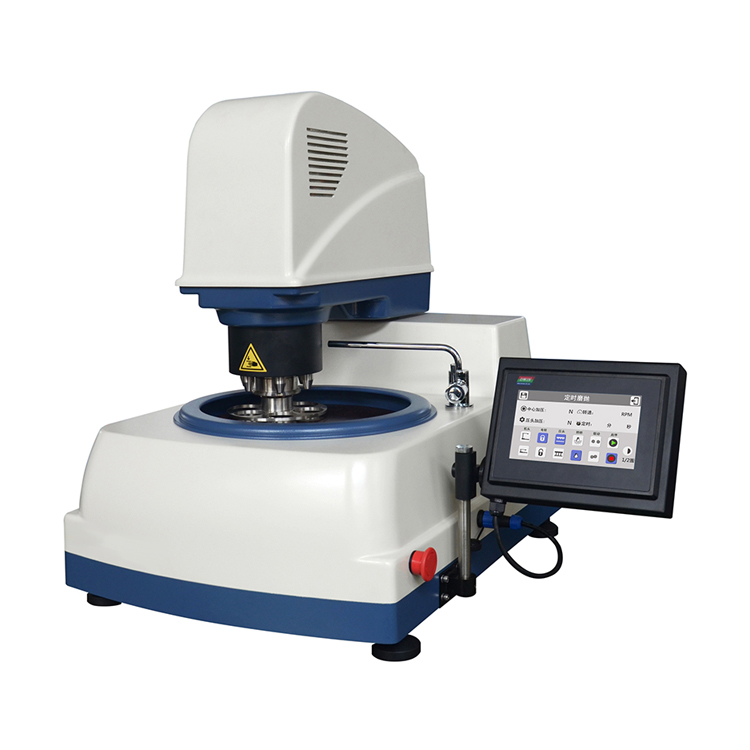

SDEKON MP-1SZT Touch Screen Digital Display Automatic Metallographic Grinding Polishing
Machine is a single-chip microcomputer controlled grinding and polishing machine.
It is stepless speed control and can change the rotational direction.
The grinding head has individual pressure and central pressure two methods.
It is the ideal equipment for the metallographic sample preparation.
2.Technical Parameter:
Model | MP-1SZT (250mm) | MP-1SZT (300mm) |
Disc Diameter | Φ 254mm | Φ 300mm |
Abrasive Paper Diameter | Φ 250mm | Φ 300mm |
Rotating Speed | Stepless Speed: 100~1000 r/min | |
Rotational Direction | Clockwise or Counterclockwise | |
Head Speed | Stepless Speed 20~120 r/min | |
Timing Set | 0~99min | |
Sample Holding QTY | 6 PCS | |
Sample Holder Specification | Φ25mm or Φ30mm or Φ40mm (Only Choose One) | |
Pressure Method | Individual Pressure or Central Pressure | |
Individual Pressure Force | 0~50N | |
Central Pressure Force | 0~160N | |
Control and Display | With Automatic Locking Of The Grinding Head, 7 Inch LCD Touch Screen | |
