Description:
1.Application:

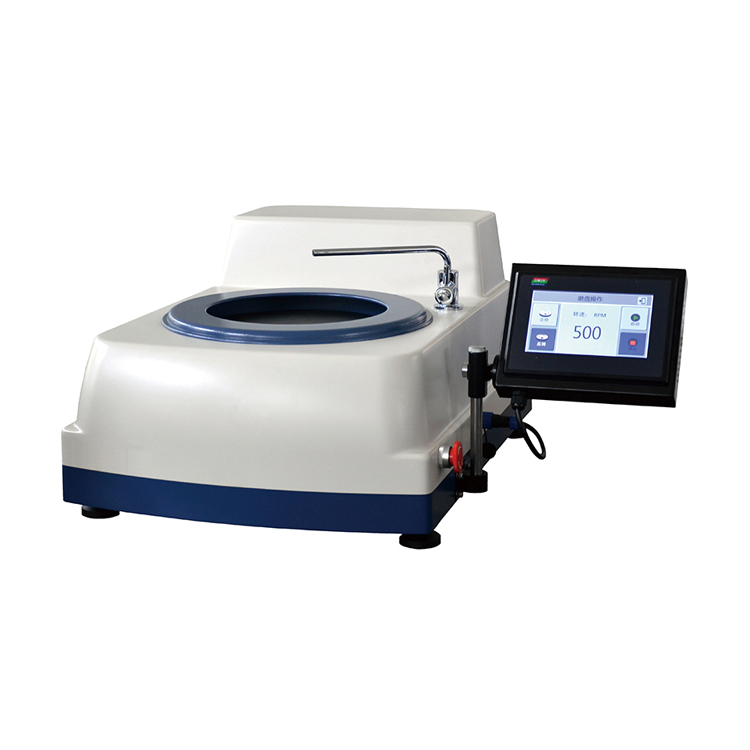

SDEKON MP-1ST Touch Screen Digital Display Metallographic Sample Grinding Polishing Machine is a
single-chip microcomputer controlled grinding and polishing machine.
The disc is stepless speed control and can change the rotational direction.
With magnetic grinding disc design, it supports for fast disc replacing system.
The disc surface is Teflon painted which makes no residue of changing abrasive paper and polishing cloth.
Equipped with cooling water pipe and solenoid water valve control, it can adjust rotational direction
for wet grinding and automatically open and close the water.
With powerful performance, visual display and easy operation, it is the ideal equipment for metallographic
sample preparation.
2.Technical Parameter:
Model | MP-1ST (250mm) | MP-1ST (300mm) |
Disc Diameter | Φ 254 mm | Φ 300 mm |
Abrasive Paper Diameter | Φ 250 mm | Φ 300 mm |
Rotating Speed | Stepless Speed: 100~1000 r/min |
Rotational Direction | Clockwise or Counterclockwise |
Control and Display | 7 Inch LCD Touch Screen |
