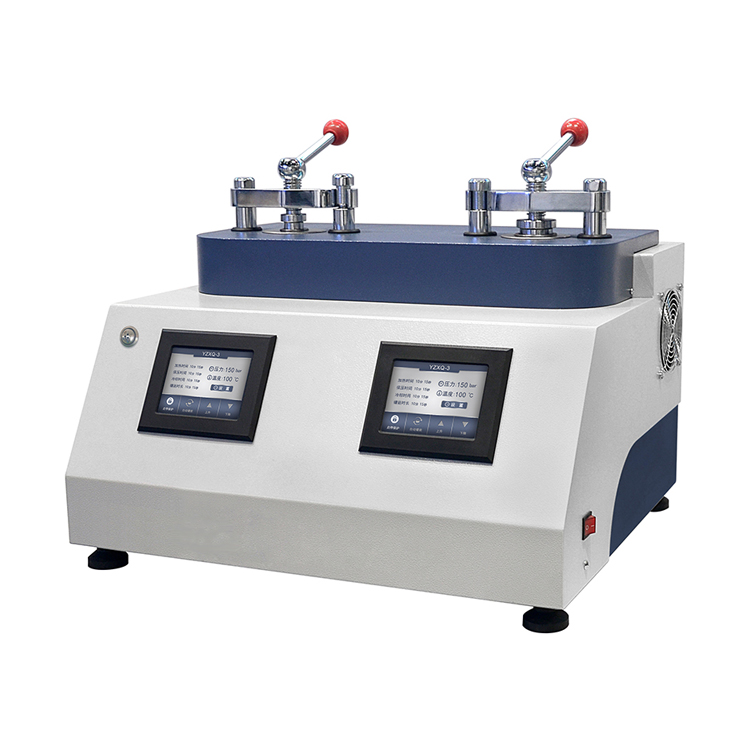

SDEKON ZXQ-3HT Touch Screen Digital Display Automatic Metallographic Sample Mounting Press
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
SDEKON ZXQ-3HT Touch Screen Digital Display Automatic Metallographic Sample Mounting Press
is an advanced hydraulic water-cooling automatic sample mounting press.
The mounting process is controlled by the program, which realizes the one-key operation of heating,
loading, holding, cooling and unloading process.
The machine adopts hydraulic pump with higher pressure, which makes the sample more compact.
Two mould specification arbitrary selection, the control and operation are independent.
High-definition touch screen displays pressure and temperature in real time, and various mounting
scheme can be saved. With water cooling system, the mounting speed is fast.
2.Technical Parameter:
Model | ZXQ-3HT |
Mould Diameter | Φ25mm, Φ30mm, Φ40mm (Arbitrary Select Two Mould) |
Cavity Height | 108mm, Effective 60mm |
Heating Power | Φ25mm: 1.2KW; Φ30mm: 1.2KW; Φ40mm: 1.6KW |
Pressure | 150 Bar |
Heating Temperature | 50~180℃ |
Heating Time | 1~7min |
Hold Time | 30s~7min |
Cooling Time | 1~30min |
Cooling Method | External Water Source Cooling |
