Description:
1.Application:

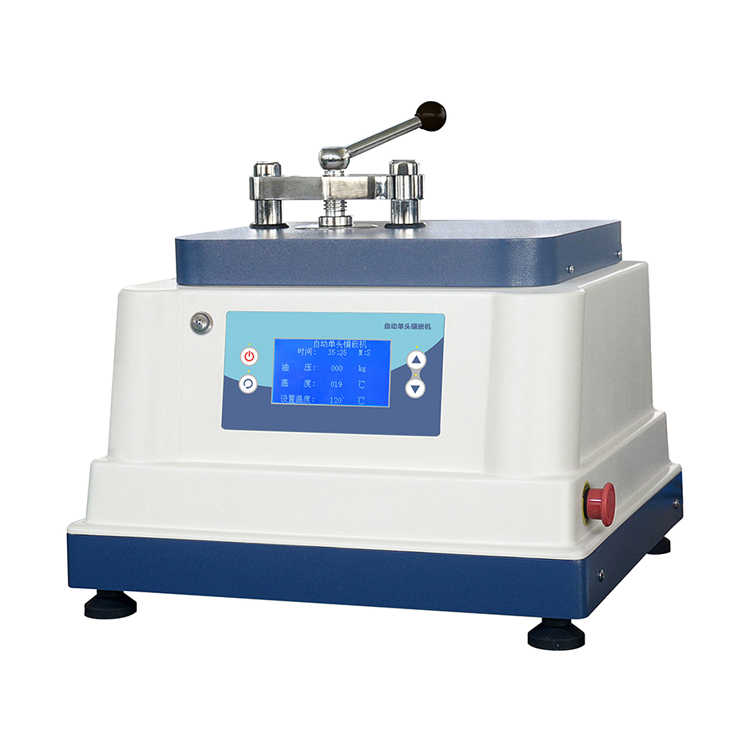

SDEKON ZXQ-2H Digital Display Automatic Metallographic Sample Mounting Press is an advanced
hydraulic water-cooling automatic sample mounting press.
The mounting process is controlled by the program, which realizes the one-key operation of heating,
loading, holding, cooling and unloading process.
The machine adopts hydraulic pump with higher pressure, which makes the sample more compact.
The water cooling system makes sample preparation fast and the special rotary locking design makes
operation more convenient.
With stable and reliable performance, it is the ideal equipment for sample mounting.
2.Technical Parameter:
Model | ZXQ-2H |
Mould Diameter | Φ25mm or Φ30mm or Φ40mm (Only Choose One) |
Cavity Height | 108mm, Effective 60mm |
Heating Power | Φ25mm: 1.2KW; Φ30mm: 1.2KW; Φ40mm: 1.6KW |
Pressure | 150 Bar |
Heating Temperature | 50~180℃ |
Hold Time | Adjustable |
Cooling Method | External Water Source Cooling |
