Description:
1.Application:

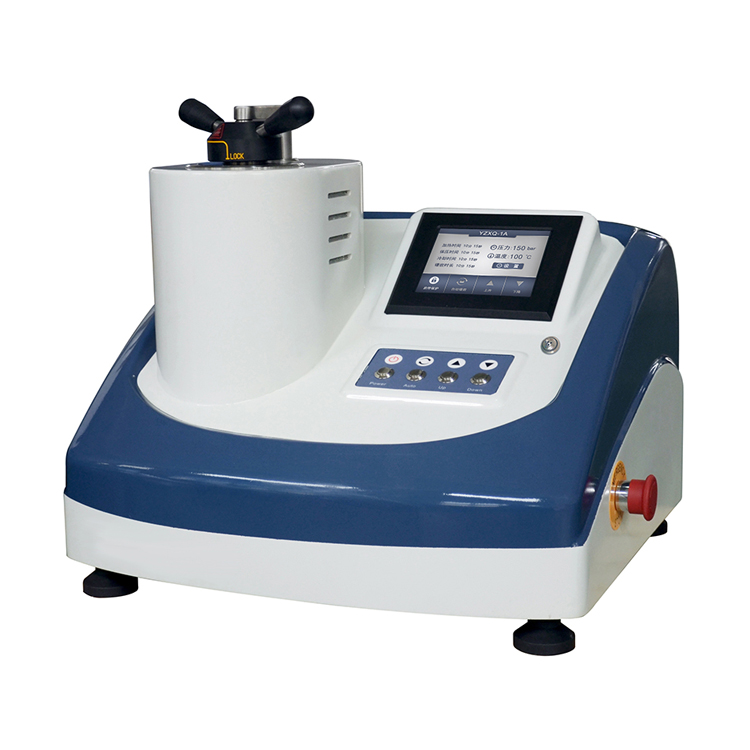

SDEKON ZXQ-1HT Touch Screen Digital Display Automatic Metallographic Sample Mounting Press
is an advanced hydraulic water-cooling automatic sample mounting press, has dual control of high
definition touch screen and physical keys, various mounting scheme can be saved.
The mounting process is controlled by the program, which realizes the one-key operation of heating,
loading, holding, cooling and unloading process.
The machine adopts hydraulic pump with higher pressure, which makes the sample more compact.
With water cooling system, it can finish two samples mounting in 7min at the soonest, which makes
sample preparation easier and more labor saving, the mounting quality is also better and more stable.
2.Technical Parameter:
Model | ZXQ-1HT |
Mould Diameter | Φ25mm or Φ30mm or Φ40mm (Only Choose One) |
Cavity Height | 140mm, Effective 85mm |
Heating Power | Φ25mm: 1.2KW; Φ30mm: 1.2KW; Φ40mm: 1.6KW |
Pressure | 50~200 Bar |
Heating Temperature | 50~180℃ |
Heating Time | 1~7min |
Hold Time | 30s~7min |
Cooling Time | 1~30min |
Cooling Method | External Water Source Cooling |
