Description:
1.Application:

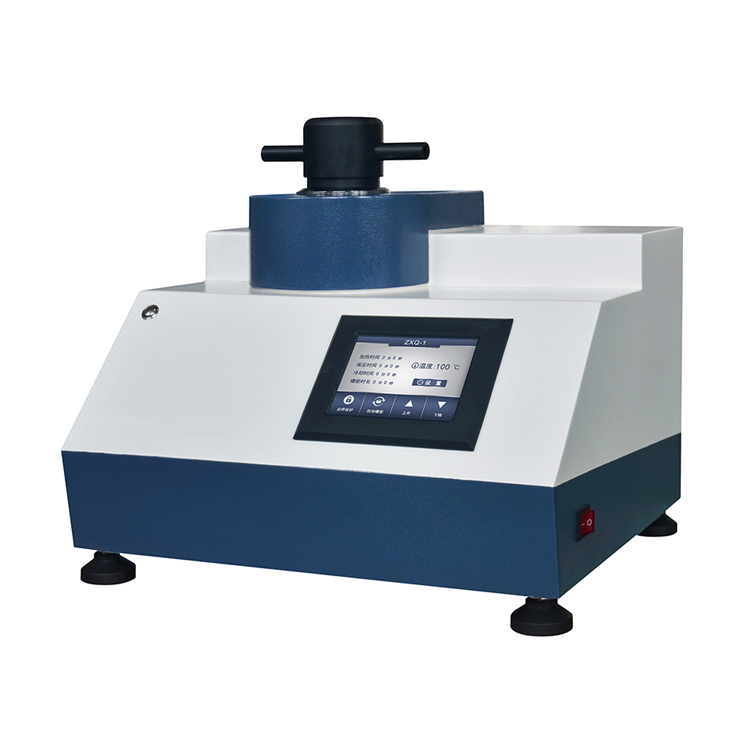

SDEKON ZXQ-1T Touch Screen Digital Display Automatic Metallographic Sample Mounting Press
is touch screen display, adopts automatic mechanical pressure.
The mounting process is controlled by the program, which realizes the one-key operation of heating,
loading, holding, cooling and unloading process.
The machine adopts the water cooling system makes sample preparation fast.
With stable and reliable performance, it is the ideal equipment for sample mounting.
2.Technical Parameter:
Model | ZXQ-1T |
Mould Diameter | Φ25mm or Φ30mm or Φ40mm (Only Choose One) |
Cavity Height | 89mm |
Heating Power | Φ25mm: 900W; Φ30mm: 900W; Φ40mm: 1200W |
Pressure | Mechanical Pressure, 130 Bar |
Electromotor Power | 120W |
Heating Temperature | 50~180℃ |
Heating Time | 1~7min |
Hold Time | 30s~7min |
Cooling Time | 1~30min |
Cooling Method | External Water Source Cooling |
