Description:
1.Application:

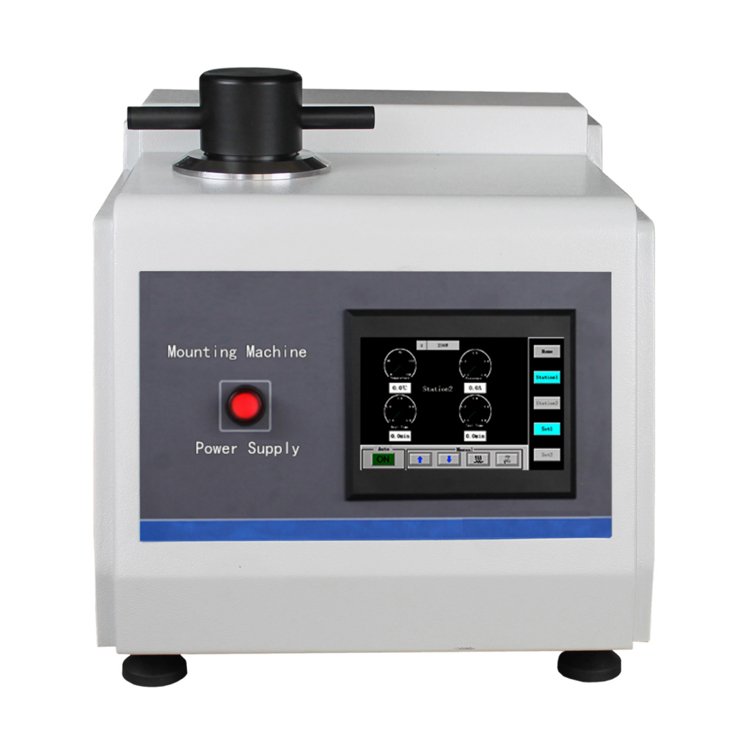

SDEKON ZXQ-2W Touch Screen Digital Display Automatic Metallographic Sample Mounting Press
is a full automatic and semi-automatic metallographic sample inlay machine operated by large
screen touch screen.
It is simple and intuitive to operate, convenient to set, stable and reliable to work.
Preheat before operation, applicable to all materials (thermoset and thermoplastic) hot Mosaic,
set the heating temperature, holding time, cooling time after the set parameters. Such as, in the
sample and Mosaic materials, cover the gland, press the start button on the touch screen interface,
can be automatic set to work, without the operator beside the machine unattended.
2.Technical Parameter:
Model | ZXQ-2W |
Loading Method | Automatic And Manual Can Be Switched |
Mold Diameter | Φ22mm OR Φ30mm OR Φ45mm |
Heater | 560W |
Operation and Display Mode | Touch Screen Digital Display |
Mounting Temperature Range | 0~200℃ Adjustable |
Mounting Time Range | 0~30 min |
Mounting Program | Can Edit Mounting Process Library, Can Store 99 Sets Of Mounting Process |
Mounting Process Input / Output | U Disk |
Pressure Mode | Automatic (Motor Loading) |
Cooling Method | Automatic Water Cooling, Controlled By Solenoid Valve |
