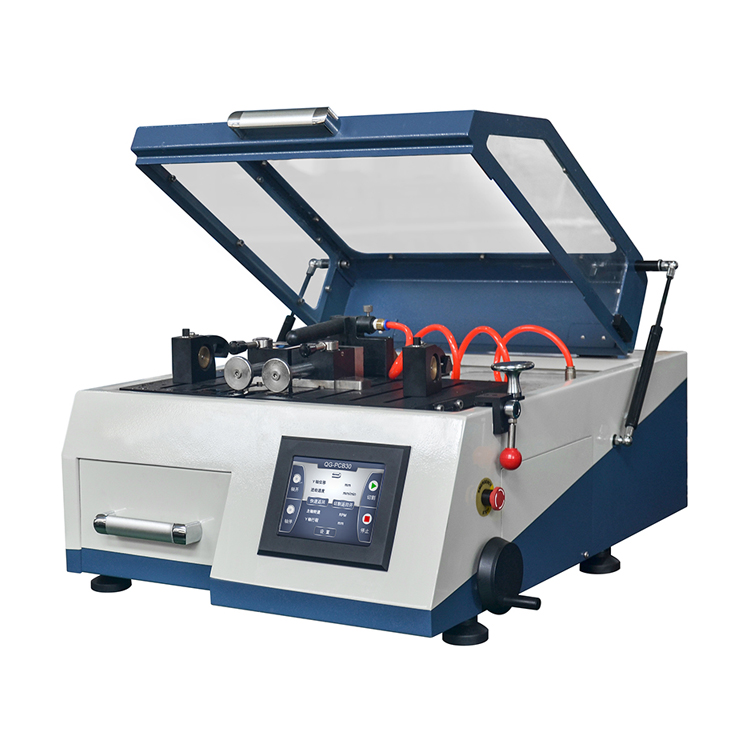

PQG-PCB30 Manual / Automatic Precision Metallographic Sample Cutting Machine
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
PQG-PCB30 Touch Screen Digital Display Manual / Automatic Precision Metallographic Sample Cutting Machine
with the touch screen control. The feed of cutting can be controlled by cut-off wheel propulsion or by cutting
table propulsion according to the different materials or personal habits, and also it can automatically finish cutting
according to the set parameter. This cutting machine can be applied to the cutting of PCB plate, metal materials
within Φ30mm, electronic parts and mounting samples, etc.
2.Technical Parameter:
Model | PQG-PCB30 |
Cutting Method | Manual / Automatic, Spindle Feeding or Table Feeding |
Feed Speed | Manual / Automatic 1-36 mm/min (Step 0.1 mm/min) |
Cut-off Wheel | Φ180x0.8xΦ22 mm |
Max. Cutting Capacity | Φ30 mm |
Max. Travel | Spindle Travel 140 mm, Table Travel 230 mm |
Spindle Speed | 500~3000 r/min |
Control and Display | 5.7 Inch Touch Screen |
Cutting Table | 245x415 mm, T-slot 8 mm |
Clamping Tool | Quick Clamp, Jaw Height 45 mm; Vertical Clamp, Opening 27 mm |
