Description:
1.Application:

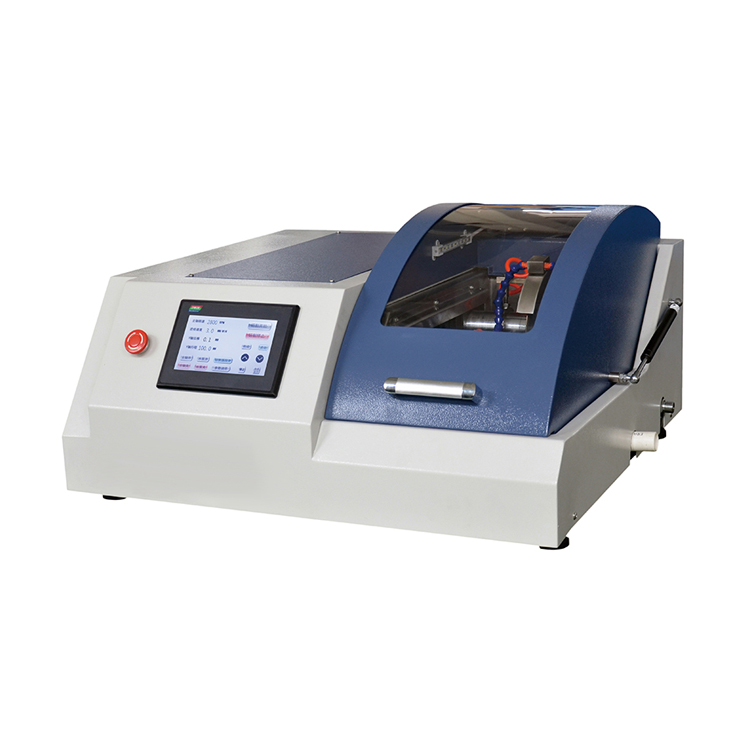

PQG-60Z Touch Screen Digital Display Automatic Precision Metallographic Sample Cutting Machine
is controlled by single chip, which is suitable for precise non-deformable cutting of metals, electronic
components, ceramic materials, crystals, cemented carbides, rocks, minerals, concrete, organic materials,
biological materials (teeth, bones) and other materials.
This machine cuts along Y axis which has high accuracy of positioning, wide range of speed regulating
and strong cutting ability with the touch screen control and display.
The cutting chamber adopts totally enclosed structure with safety limit switch and transparent window
for observation. With the circulation cooling system, the surface of the cut sample is bright and smooth
without burns.
2.Technical Parameter:
Model | PQG-60Z |
Cutting Method | Automatic, Spindle Feeding Along Y Axis |
Feed Speed | 0.7-36 mm/min (Step 0.1 mm/min) |
Cut-off Wheel | Φ205x1.2xΦ32 mm |
Max. Cutting Capacity | Φ60 mm |
Y Axis Travel | 200 mm |
Spindle Span | 125 mm |
Spindle Speed | 500~3000 r/min |
Control and Display | 7 Inch Touch Screen |
Cutting Table | 320x225 mm, T-slot 12 mm |
Clamping Tool | Quick Clamp, Jaw Height 45 mm |
