Description:
1.Application:

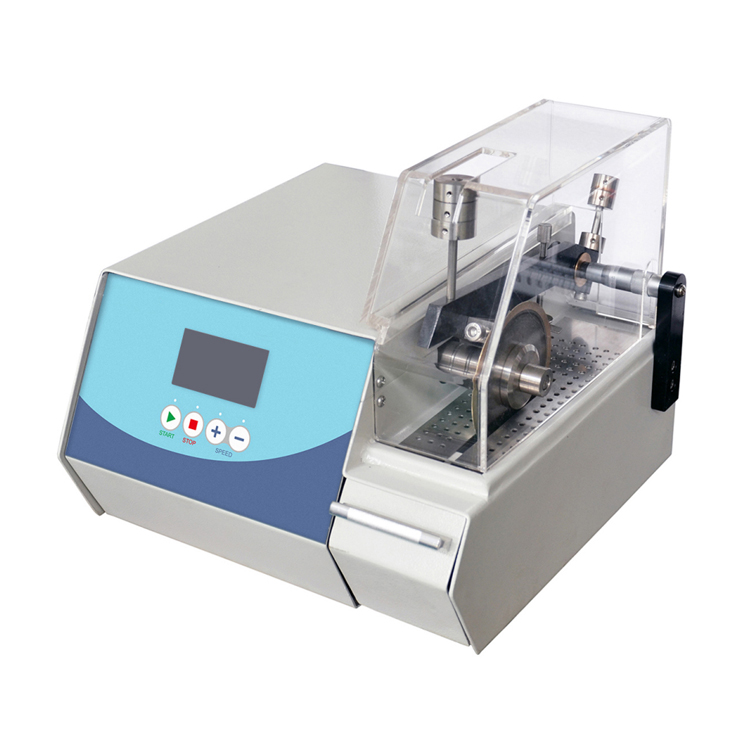

PQG-25 Low Speed Precision Metallographic Sample Cutting Machine is mainly used to cut small cylinder,
square metal and electronic circuit board materials.
The machine adopts deadweight cutting which has a constant load and will stop automatically when the
cutting is finished. To avoid burning the sample due to overheating, the diamond cut-off wheel will bring
out the cooling water when cutting to cool the wheel and the sample.
The surface of the sample after cutting is bright and flat without burns, thus it is an excellent machine for
cutting small material and electronic circuit boards.
2.Technical Parameter:
Model | PQG-25 |
Cutting Method | Automatic, Deadweight Cutting |
Cut-off Wheel | Φ100x0.7xΦ12.7 mm |
Max. Cutting Capacity | Φ25 mm |
X axis Travel | 12 mm, Step 0.1 mm |
Spindle Speed | 50~800 r/min |
Control and Display | Film Key Operation, LCD Display |
