Description:
1.Application:

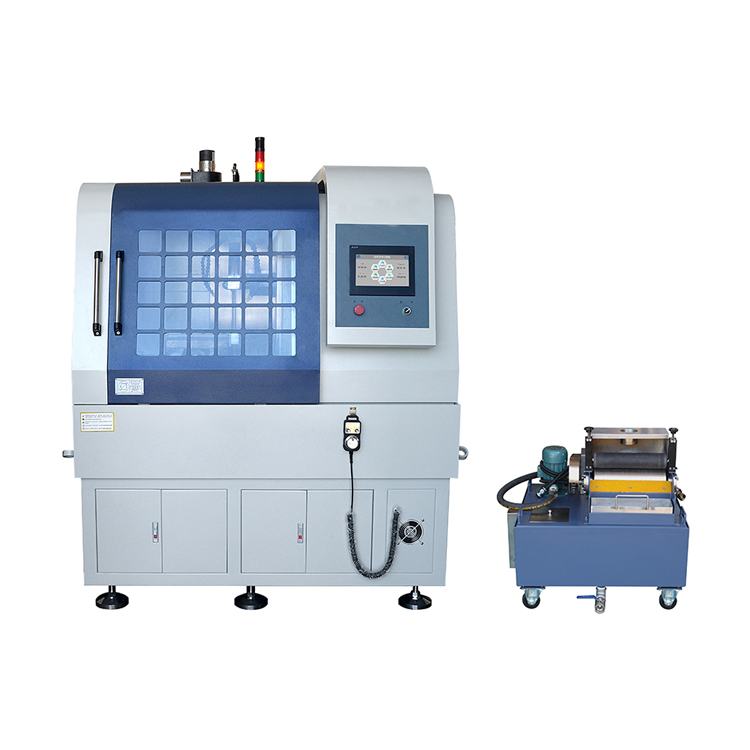

QG-200FZ Touch Screen Digital Display Fully Automatic Metallographic Sample Cutting Machine is a PLC
controlled metallographic sample cutting machine, and it can also be controlled by electronic handwheel.
Using Schneider electric and Mitsubishi software, X, Y, Z axis can be automatically and accurately controlled,
it can adjust the amount of feed according to the hardness of material to achieve the fastest cutting effect.
This machine is specially designed for large-capacity cutting of large workpieces, making it easier to maintain
machine parts and deal with large workpieces.
It is suitable for various ferrous metals, non-ferrous metals, heat treatment parts, forgings, semiconductors,
crystals, ceramics and rocks etc.
It is especially suitable for cutting large workpieces in iron and steel metallurgy, automobile shipbuilding,
heavy machine processing, bearing manufacturing and other industries to prepare non-burn samples.
2.Technical Parameter:
Model | QG-200FZ |
Control Method | Manual / Automatic, Three-axis Linkage, 10 Inch Industrial Touch Screen Control or Electronic Handwheel Control |
Feeding Speed | 1~200 mm/min |
Cut-off Wheel | Φ400x3xΦ32 mm |
Cutting Table (X*Y) | 485x400 mm |
Y Axis Travel | 300 mm |
X Axis Travel | 100 mm |
Z Axis Travel | 230 mm |
Max. Cutting Capacity | 200x150 mm |
Clamp Opening | 200 mm |
Spindle Motor | ABB Frequency Conversion Motor, 7.5KW |
Spindle Speed | 500~2800 r/min |
Feeding Motor | Servo Motor |
