Description:
1.Application:

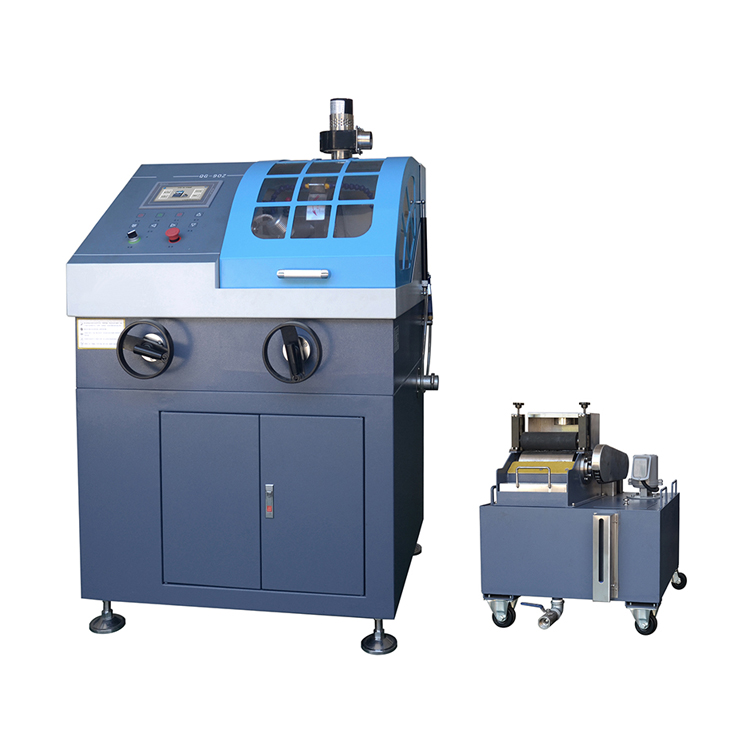

QG-90Z Touch Screen Digital Display Manual / Automatic Metallographic Sample Cutting Machine
is a manual / automatic precision cutting machine.
This machine is suitable for the sample cutting of various shapes, sizes and materials, suitable for
various ferrous metals, non-ferrous metals, heat treatment parts, forgings, semiconductors, crystals,
ceramics and rocks etc., the surface of the sample after cutting is bright and flat without burns, thus
it is the ideal equipment for sample cutting.
2.Technical Parameter:
Model | QG-90Z |
Cutting Method | Manual / Automatic, Table Feeding Along Y Axis |
Cutting Mode | Continuous Cutting, Pulse Cutting |
Feeding Speed | Manual / Automatic 1~240 mm/min |
Cut-off Wheel | Φ300x2xΦ32 mm |
Max. Cutting Capacity | Φ90 mm |
Y Axis Travel | 260 mm |
X Axis Travel | 40 mm |
Z Axis Travel | 50 mm |
Spindle Speed | 500~3000 r/min |
Control and Display | 7 Inch Touch Screen |
Cutting Table | 435x300 mm, T-slot 12 mm |
Clamping Tool | Quick Clamp, Jaw Height 60 mm |
