Description:
1.Application:

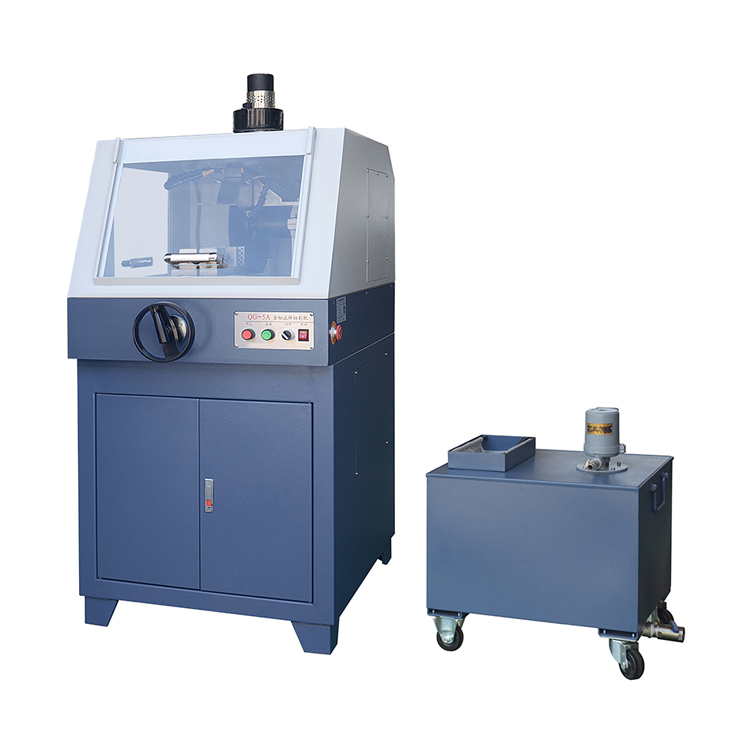

QG-5A Vertical Type Manual Metallographic Sample Cutting Machine is suitable for various metallographic
materials. The sample can be cut by the longitudinal movement of the table, which has large cutting range
and strong cutting ability. It adopts the double-sided clamp structure, which can fix the sample firmly.
The cutting chamber adopts two sides transparent plexiglass window,built-in LED lamp and powerful exhaust
fan, which makes observation more clear.
With cabinet structure, it is easy to store all kinds of cutting consumables.
With circulating cooling water tank, the surface of the sample after cutting is bright and flat without burns,
thus it is the ideal equipment for sample cutting.
2.Technical Parameter:
Model | QG-5A |
Cutting Method | Manual, Table Feeding Along Y Axis |
Cut-off Wheel | Φ350x2.5xΦ32 mm |
Max. Cutting Capacity | 100x100 mm |
Y Axis Travel | 265 mm |
Spindle Speed | 2800 r/min |
Cutting Table | 250x240 mm, T-slot 12 mm |
Clamping Tool | Threaded Clamp, Jaw Height 60 mm, Opening 100 mm |
