Description:
1.Application:

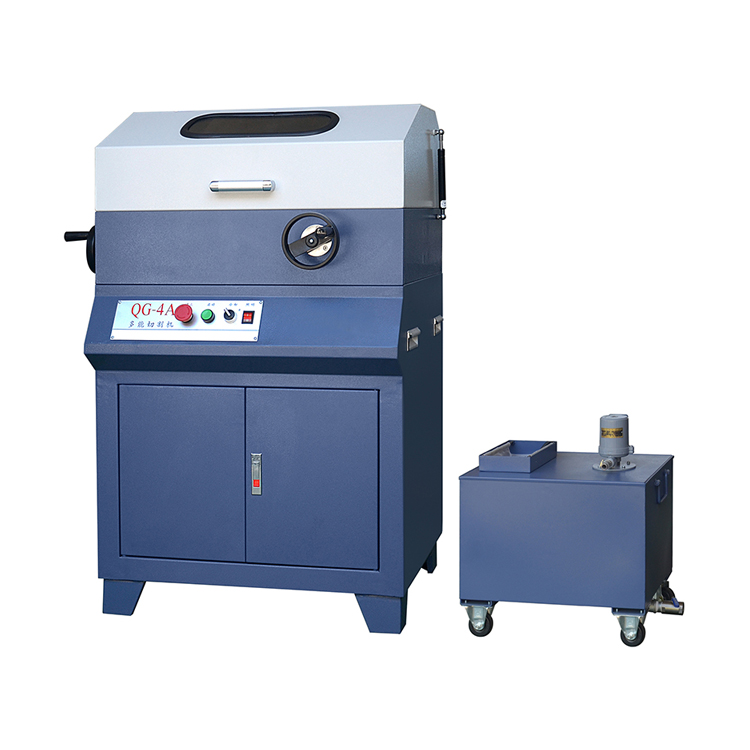

QG-4A Vertical Type Manual Multifunctional Metallographic Sample Cutting Machine is suitable for various
metallographic materials. The cutting thickness of the material can be adjusted by the lateral movement of
the cutting table, and then the sample can be cut by the longitudinal movement of the spindle, which has
strong cutting ability and convenient operation. The cutting chamber adopts closed structure with safety
limit switch, and it has the transparent plexiglass window and built-in LED lamp for observation when cutting.
With cabinet structure, it is easy to store all kinds of cutting consumables.
With circulating cooling water tank, surface of sample after cutting is bright and flat without burns, thus it is
ideal equipment for sample cutting.
2.Technical Parameter:
Model | QG-4A |
Cutting Method | Manual, Spindle Feeding Along Y Axis |
Cut-off Wheel | Φ250x2xΦ32 mm |
Max. Cutting Capacity | 65x65 mm |
X Axis Travel | 45 mm |
Y Axis Travel | 270 mm |
Spindle Speed | 2800 r/min |
Cutting Table | 130x190 mm, T-slot 12 mm |
Clamping Tool | Quick Clamp, Jaw Height 60 mm |
