Description:
1.Application:

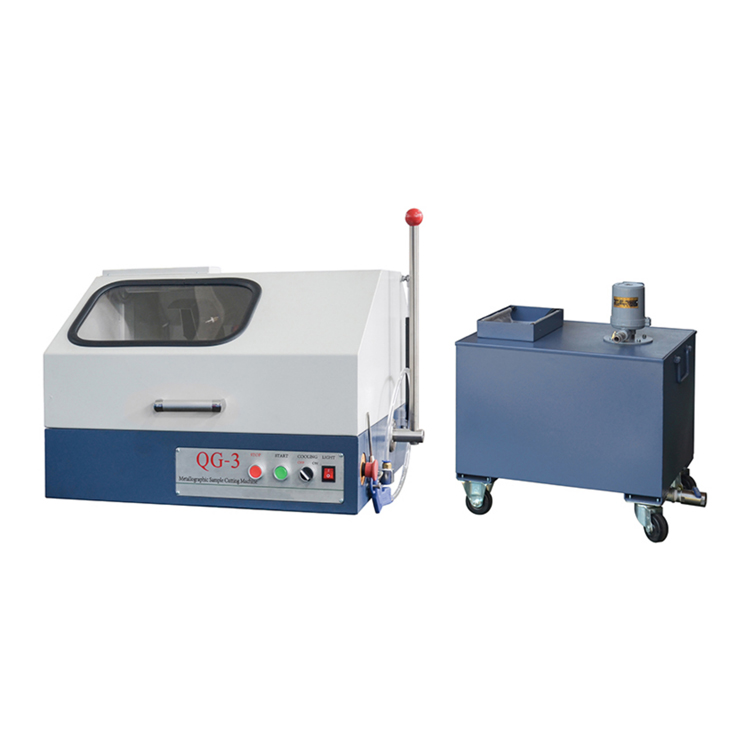

QG-3 Benchtop Type Manual Metallographic Sample Cutting Machine is suitable for general metallographic
and lithofacies materials. It adopts the double-sided clamp structure, which can fix the sample firmly.
The cutting chamber adopts closed structure with safety limit switch, while there is an opening in the left of
the cover which can cut long strip samples, and it has the transparent plexiglass window and built-in LED lamp
for observation when cutting. With circulating cooling water tank, the surface of the sample after cutting is
bright and flat without burns, thus it is the ideal equipment for sample cutting.
2.Technical Parameter:
Model | QG-3 (Benchtop Type) |
Cutting Method | Manual |
Cut-off Wheel | Φ300x2xΦ32 mm |
Max. Cutting Capacity | 85x85 mm |
Spindle Speed | 2800 r/min |
Cutting Table | 204x240 mm, T-slot 12 mm |
Clamping Tool | Quick Clamp, Jaw Height 60 mm |
