1.Application:

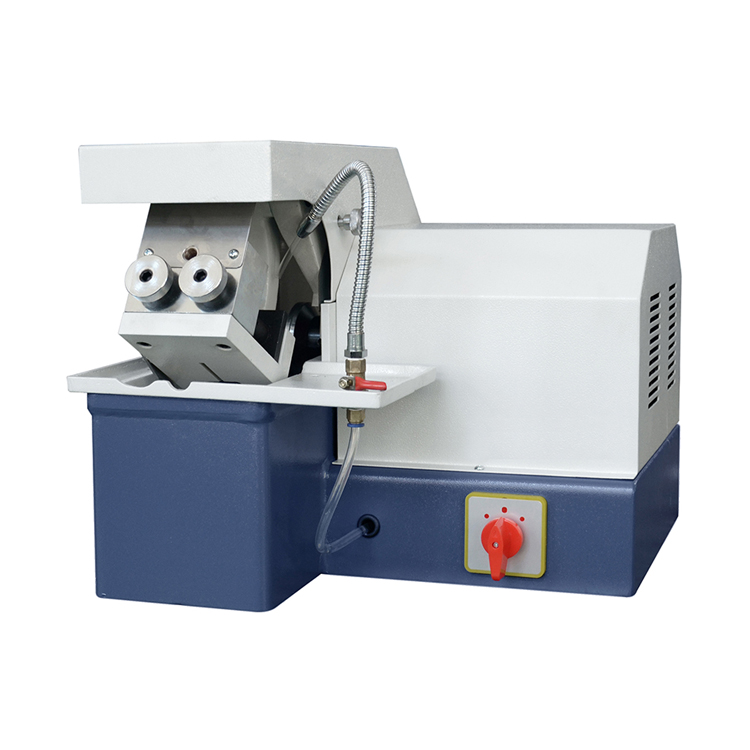

QG-1 Manual Metallographic Sample Cutting Machine adopts high speed rotating resin cut-off
wheel to cut the samples. In order not to burn the sample, it is equipped with cooling system.
It is widely used in the metallographic laboratory for cutting various samples, which is very easy
to operate and maintain.
2.Technical Parameter:
Model | QG-1 |
Cutting Method | Manual, Y Axis Feeding |
Cut-off Wheel | Φ300x2xΦ32 mm |
Max. Cutting Capacity | 50x50 mm |
Spindle Speed | 2800 r/min |
Clamping Tool | Threaded Clamp, Jaw Height 50 mm |
