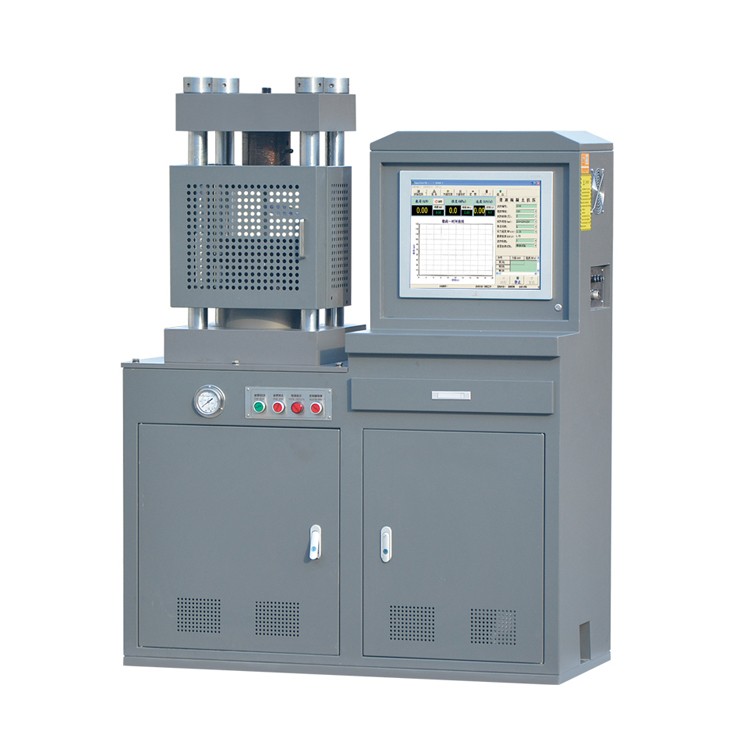

SDEKON HYE-1000B Computer Control Electro-hydraulic Servo Compression Testing Machine
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
SDEKON HYE-1000B Computer Control Electro-hydraulic Servo Compression Testing Machine
adopts hydraulic power source drive, electro-hydraulic servo control technology, computer data
acquisition processing, high precision material testing equipment that can realize closed-loop
control and automatic detection.
This machine suitable for compressive tests of cement and concrete.
2.Main Specifications:
Model | HYE-1000B |
Machine Level | Level 1 |
Host Structure | Four Columns Frame Type |
Max. Load | 1000 KN (100 TONS) |
Range Of Test Force | 1%~100% FS |
Test Force Loading Speed | 0.02%~2%FS/s |
Piston Stroke | 150 mm |
Max. Compression Space | 280 mm |
Upper Platen Size | Φ230 mm |
Lower Platen Size | Φ230 mm |
Force Load Way | Computer Control Load Way |
Test Date Display | Computer Display |
