Description:
1.Application:

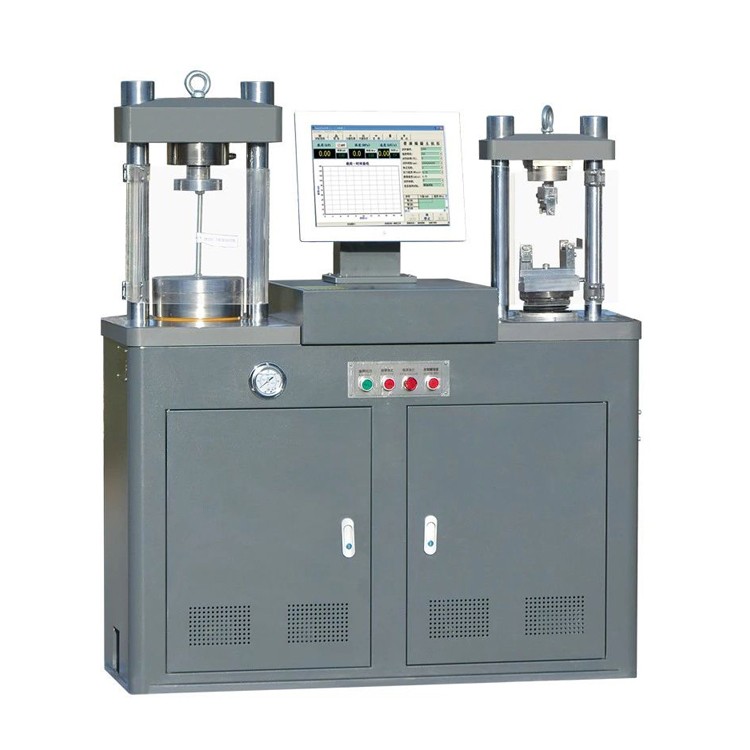

SDEKON HYE-300D Computer Control Electro-hydraulic Servo Compression and Flexural Testing Machine
adopts hydraulic power source and servo motor drive, electro-hydraulic servo control technology, computer
data acquisition processing, high-precision material testing equipment that can realize closed-loop control
and automatic detection.
It can set the loading rate in accordance with the corresponding national standards and meet the standard
loading rate control indicators for compression and bending tests under the rated test force on materials
such as cement and concrete. The compression part, suitable for compressive tests of cement and concrete.
The bending fixture is an integrated springless design, test results more accurate, can meet the flexural test
of cement sand.
2.Main Specifications:
Model | HYE-300D |
Machine Level | Level 1 |
Max. Load | 300 KN (30 TONS) (Compression) | 10 KN (1 TON) (Bending) |
Range Of Test Force | 1%~100% FS |
Piston Stroke | 80 mm | 60 mm |
Max. Compression Space | 180 mm | 180 mm |
Fixed Type Upper Platen Size | Φ108 mm | Φ60 mm |
Ball Head Type Upper Platen Size | Φ170 mm | NO |
Lower Platen Size | Φ205 mm | NO |
Force Load Way | Computer Control Load Way |
Test Date Display | Computer Display |
