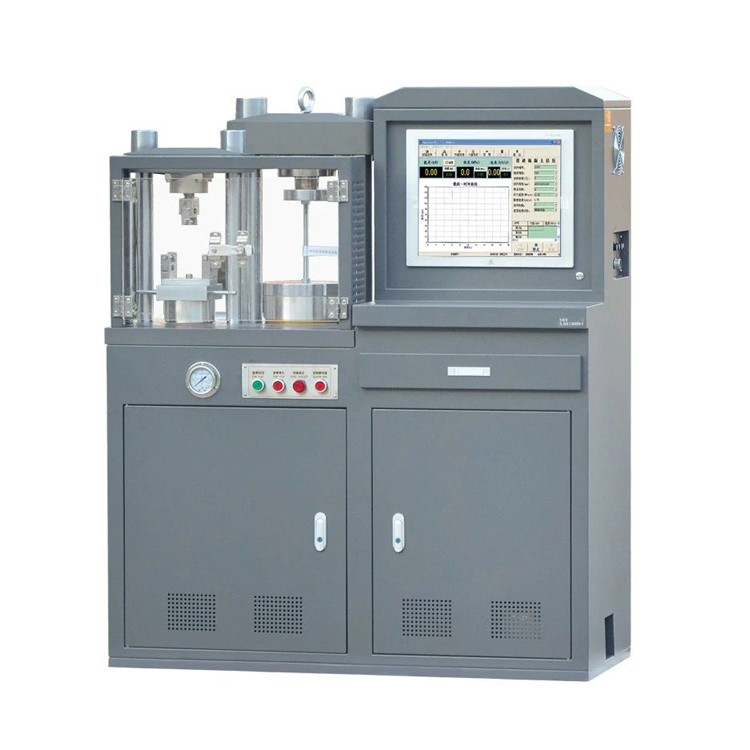

SDEKON HYE-300B Computer Control Electro-hydraulic Servo Compression and Flexural Testing Machine

1.Application:

SDEKON HYE-300B Computer Control Electro-hydraulic Servo Compression and Flexural Testing Machine adopts

hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition processing,

high-precision material testing equipment that can realize closed-loop control and automatic detection.

It can set the loading rate in accordance with the corresponding national standards and meet the standard loading

rate control indicators for compression and bending tests under the rated test force on materials such as cement

and concrete. The compression part, suitable for compressive tests of cement and concrete. The bending fixture is

an integrated springless design, test results more accurate, can meet the flexural test of cement sand.

2.Main Specifications:

Model	HYE-300B
Machine Level	Level 1
Max. Load	300 KN (30 TONS) (Compression)	10 KN (1 TON) (Bending)
Range Of Test Force	1%~100% FS
Piston Stroke	80 mm	60 mm
Max. Compression Space	180 mm	180 mm
Fixed Type Upper Platen Size	Φ108 mm	Φ60 mm
Ball Head Type Upper Platen Size	Φ170 mm	NO
Lower Platen Size	Φ205 mm	NO
Force Load Way	Computer Control Load Way
Test Date Display	Computer Display

Computer Control Type
