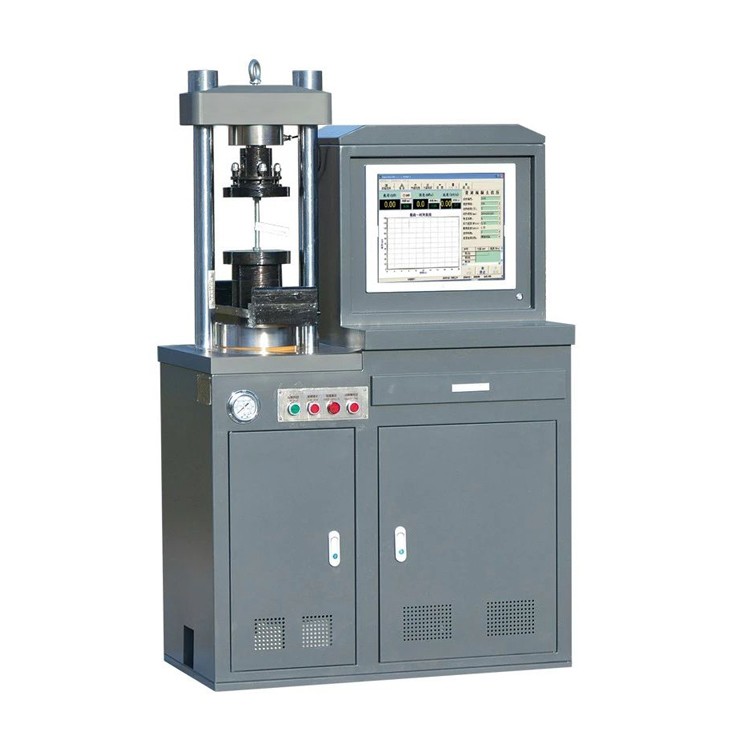

SDEKON HYE-300 Computer Control Electro-hydraulic Servo Compressive Testing Machine
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
SDEKON HYE-300 Computer Control Electro-hydraulic Servo Compressive Testing Machine adopts hydraulic
power source drive, electro-hydraulic servo control technology, computer data acquisition processing, high
precision material testing equipment that can realize closed-loop control and automatic detection.
It is an integrated structure of host and oil source; suitable for compressive tests of cement and concrete.
2.Main Specifications:
Model | HYE-300 |
Machine Level | Level 1 |
Host Structure | Two Columns Frame Type |
Max. Load | 300 KN (30 TONS) |
Range Of Test Force | 1%~100% FS |
Piston Stroke | 80 mm |
Max. Compression Space | 180 mm |
Fixed Type Upper Platen Size | Φ108 mm |
Ball Head Type Upper Platen Size | Φ170 mm |
Lower Platen Size | Φ205 mm |
Force Load Way | Computer Control Load Way |
Test Date Display | Computer Display |
