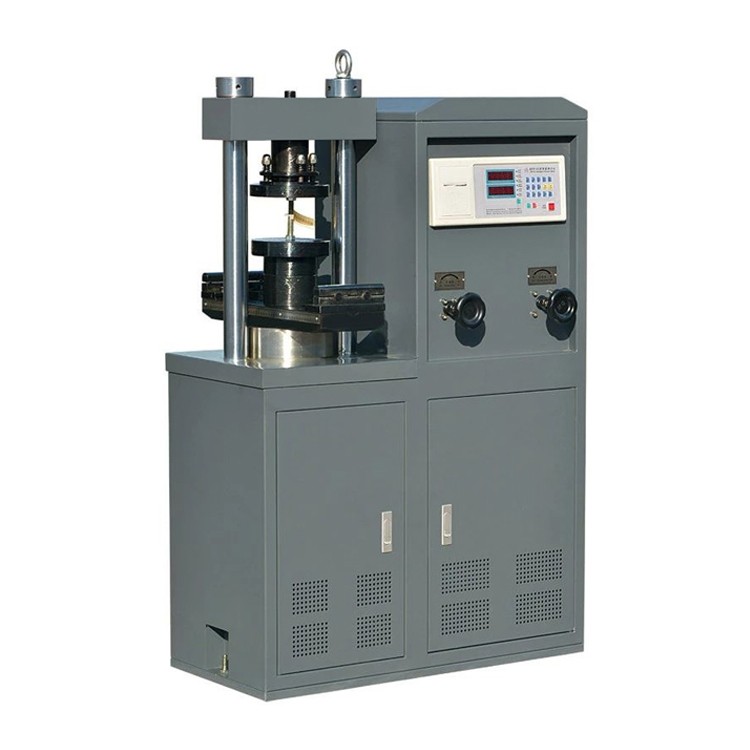

SDEKON SYE-300 Digital Display Electro-hydraulic Compression Testing Machine
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
SDEKON SYE-300 Digital Display Electro-hydraulic Compression Testing Machine use hydraulic power source
drive, use the intelligent measurement and control instruments to collect and processing the test data.
This machine mainly used for compression test the brick, concrete, cement and other building materials.
Manual loading, digital display load force and load speed value.
2.Main Specifications:
Model | SYE-300 |
Machine Level | Level 1 |
Host Structure | Two Columns Frame Type |
Max. Load | 300 KN (30 TONS) |
Range Of Test Force | 4%~100% FS |
Relative Error Of Test Force Indication | Within ±1% |
Piston Stroke | 80 mm |
Max. Compression Space | 210 mm |
Concrete Bending Space | 180 mm |
Upper Platen Size | Φ170 mm |
Lower Platen Size | Φ170 mm |
Force Load Way | Manual Control Load Way |
Testing Space Regulating Way | Manual Adjustment |
