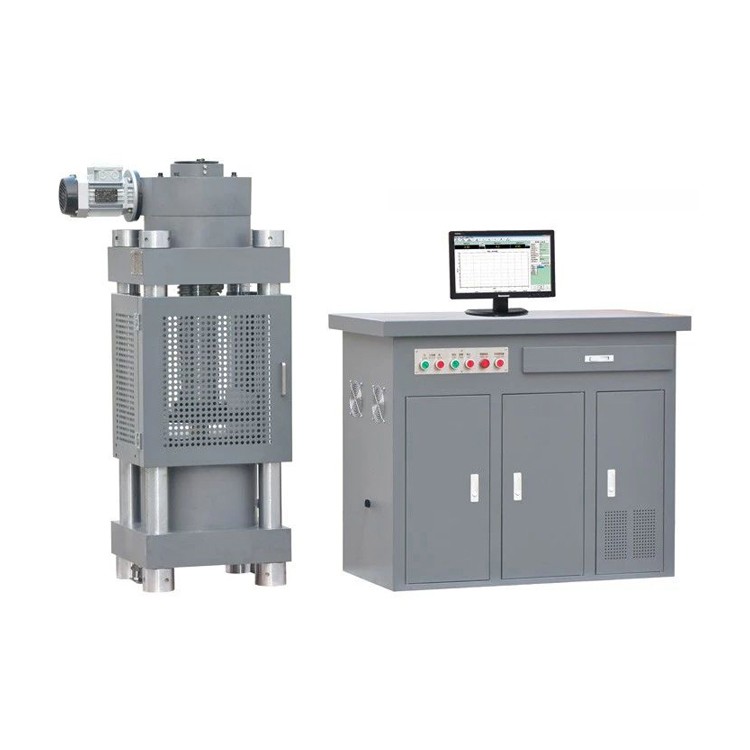

SDEKON HYE-2000 Computer Control Electro-hydraulic Servo Compression Testing Machine

1.Application:

SDEKON HYE-2000 Computer Control Electro-hydraulic Servo Compression Testing Machine adopts hydraulic

power source drive, electro-hydraulic servo control technology, computer data acquisition processing, high

precision material testing equipment that can realize closed-loop control and automatic detection.

It can set the loading rate in accordance with the corresponding national standards and meet the standard

loading rate control indicators for compression and bending tests under the rated test force on materials

such as cement and concrete.

2.Main Specifications:

Model	HYE-2000
Machine Level	Level 1
Host Structure	Four Columns Frame Type
Max. Load	2000 KN (200 TONS)
Range Of Test Force	1%~100% FS
Relative Error Of Test Force Indication	Within ±1%
Test Force Loading Speed	0.02%~2%FS/s
Force Load Way	Computer Control Load Way
Testing Space Regulating Way	Electric Ball Screw Adjustment
Piston Stroke	50mm
Max. Compression Space	320mm
Upper Platen Size	240*240mm
Lower Platen Size	300*250mm

Computer Control Type
