Description:
1.Application:

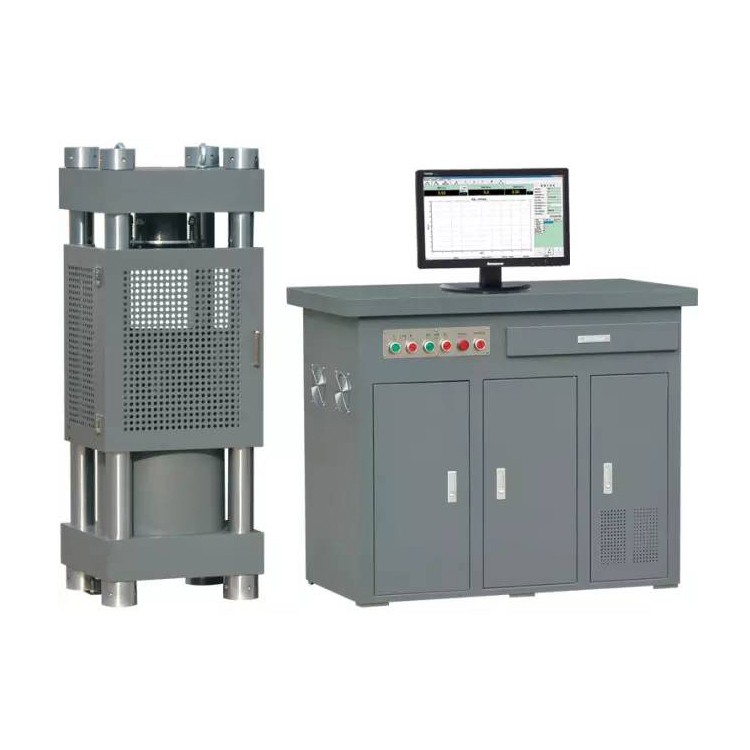

SDEKON HYE-2000BS Computer Control Electro-hydraulic Servo Compression Testing Machine use hydraulic
power source drive, electro-hydraulic servo control technology, computer data acquisition processing, high
precision material testing equipment that can realize closed-loop control and automatic detection.
It can set the loading rate in accordance with the corresponding national standards and meet the standard
loading rate control indicators for compression and bending tests under the rated test force on materials
such as cement and concrete.
2.Main Specifications:
Model | HYE-2000BS |
Machine Level | Level 1 |
Host Structure | Four Columns Frame Type |
Max. Load | 2000 KN (200 TONS) |
Range Of Test Force | 1%~100% FS |
Force Load Way | Computer Control Load Way |
Testing Space Regulating Way | Four Columns Block Adjustment |
Piston Stroke | 120 mm |
Max. Compression Space | 360 mm |
Ball Head Type Upper Platen Size | Φ300 mm |
Lower Platen Size | Φ300 mm |
