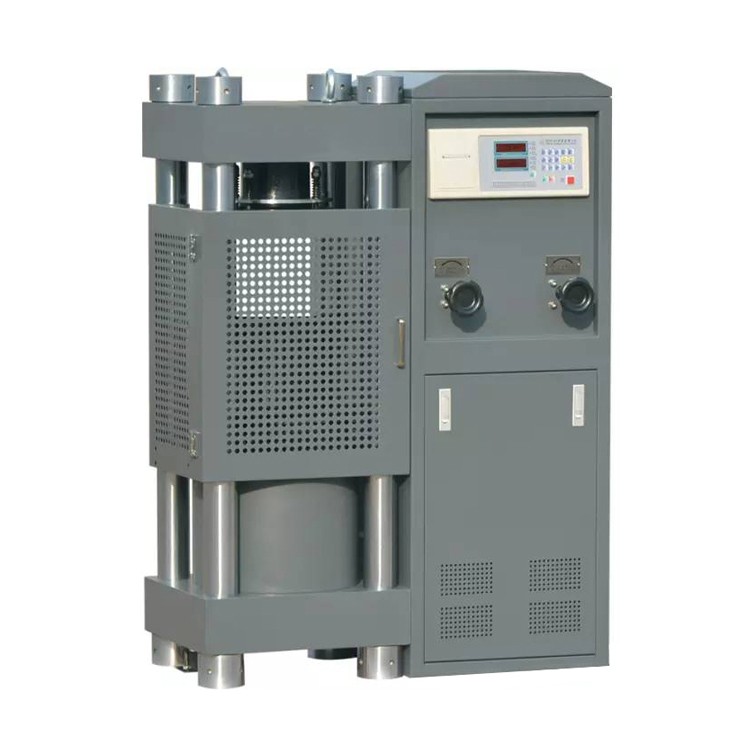

SDEKON SYE-2000BS Digital Display Electro-hydraulic Compression Testing Machine
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
SDEKON SYE-2000BS Digital Display Electro-hydraulic Compression Testing Machine use hydraulic power source
drive, use the intelligent measurement and control instruments to collect and processing the test data.
This machine mainly used for compression test the brick, concrete, cement and other building materials.
Manual loading, digital display load force and load speed value.
2.Main Specifications:
Model | SYE-2000BS |
Machine Level | Level 1 |
Host Structure | Four Columns Frame Type |
Max. Load | 2000 KN (200 TONS) |
Range Of Test Force | 4%~100% FS |
Force Load Way | Manual Control Load Way |
Testing Space Regulating Way | Four Columns Block Adjustment |
Piston Stroke | 120 mm |
Max. Compression Space | 360 mm |
Ball Head Type Upper Platen Size | Φ300 mm |
Lower Platen Size | Φ300 mm |
Test Date Display | Nixie Tubes Display |
