Description:
1.Application:

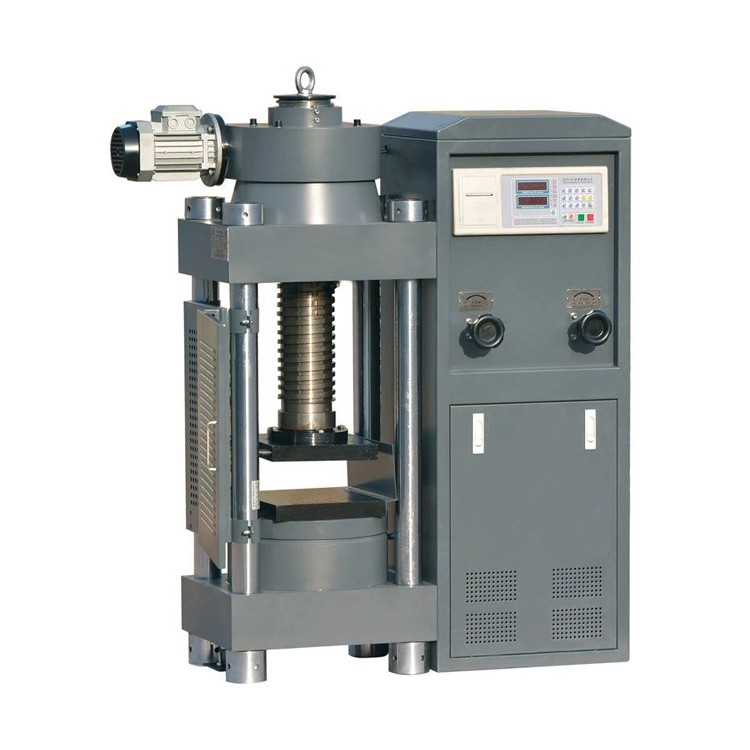

SDEKON SYE-2000D Digital Display Electro-hydraulic Compression Testing Machine use hydraulic power source
drive, use the intelligent measurement and control instruments to collect and processing the test data.
This machine mainly used for compression test the brick, concrete, cement and other building materials.
Manual loading, digital display load force and load speed value.
2.Main Specifications:
Model | SYE-2000D |
Machine Level | Level 1 |
Host Structure | Four Columns Frame Type |
Max. Load | 2000 KN |
Range Of Test Force | 4%~100% FS |
Relative Error Of Test Force Indication | Within ±1% |
Force Load Way | Manual Control Load Way |
Testing Space Regulating Way | Electric Ball Screw Adjustment |
Piston Stroke | 50 mm |
Max. Compression Space | 320 mm |
Upper Platen Size | 240*240 mm |
Lower Platen Size | 300*250 mm |
Test Date Display | Nixie Tubes Display |
