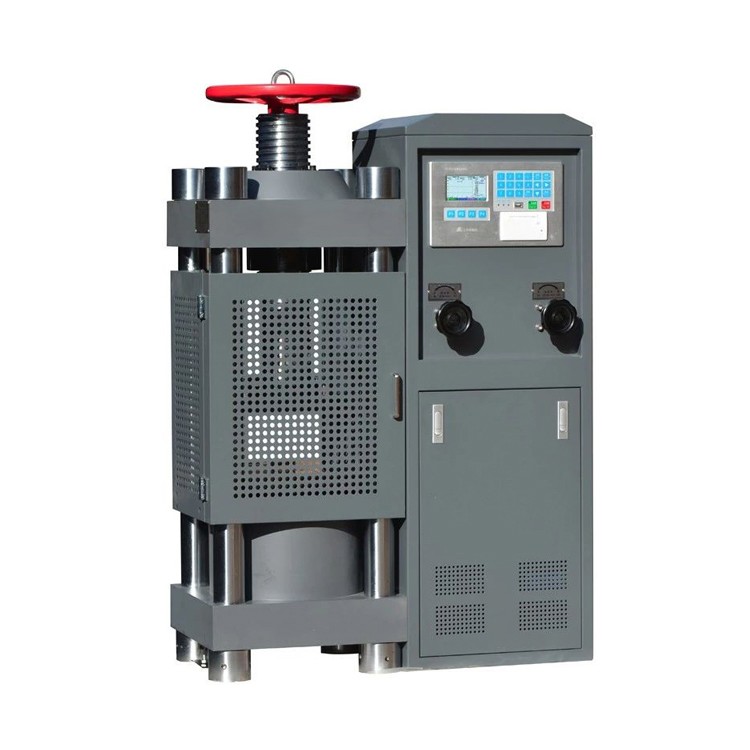

SDEKON SYE-2000A Digital Display Electro-hydraulic Compression Testing Machine (Aluminum Meter)
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
SDEKON SYE-2000A Digital Display Electro-hydraulic Compression Testing Machine use hydraulic power
source drive, use the intelligent measurement and control instruments to collect and processing the test
data. It uses aluminum digital display meter.
This machine mainly used for compression test the brick, concrete, cement and other building materials.
Manual loading, digital display load force and load speed value.
2.Main Specifications:
Model | SYE-2000A |
Machine Level | Level 1 |
Host Structure | Four Columns Frame Type |
Digital Display Meter | Aluminum Material |
Max. Load | 2000 KN |
Range Of Test Force | 4%~100% FS |
Force Load Way | Manual Control |
Testing Space Regulating Way | Manual Ball Screw Adjustment |
Piston Stroke | 120 mm |
Max. Compression Space | 320 mm |
Upper Platen Size | 240*240 mm |
Lower Platen Size | 350*260 mm |
Test Date Display | Nixie Tubes Display |
