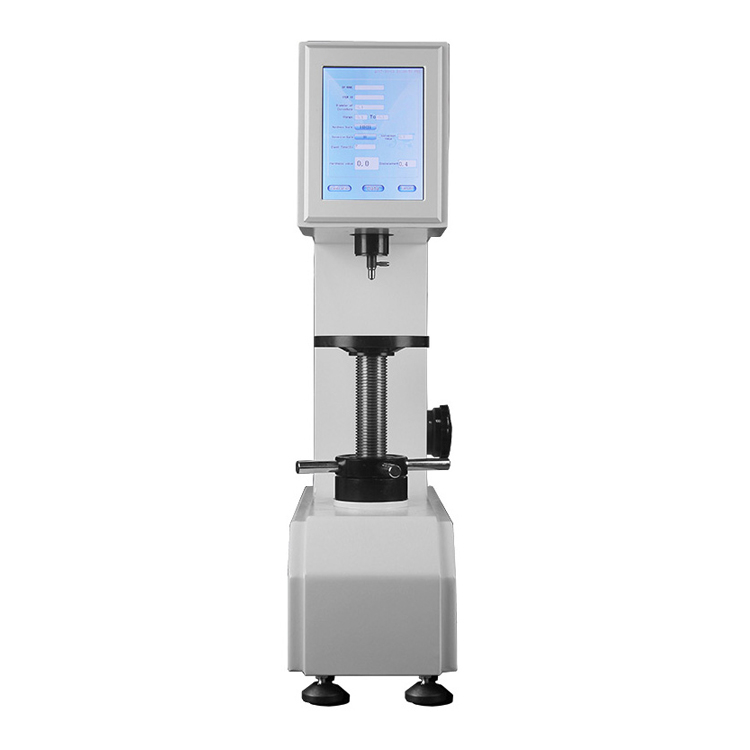

HR-45DT Touch Screen Digital Display Superficial Rockwell Hardness Tester
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
HR-45DT Touch Screen Digital Display Superficial Rockwell Hardness Tester uses the weights electric loading,
high precision sensor. Touch screen interface, easy to operate.
Automatic correction of high, medium and low hardness values according to the standard hardness block.
Built-in hardness value correction of convex cylindrical surface.
Test results can be stored, processed and printed automatically.
2.Technical Parameter:
Model | HR-45DT |
Initial Test Force | 3Kgf (29.42N) |
Main Test Force | 15Kgf (147.1N); 30Kgf (294.2N); 45Kgf (441.3N) |
Hardness Scale | HR15N; HR30N; HR45N; HR15T; HR30T; HR45T |
Hardness Value Resolution | 0.1 HR |
Test Force Error | ＜1% |
Dwell Time | 0~60 s |
Max. Height Of Sample | 200 mm |
Distance From Indenter To The Wall | 200 mm |
Conversion Scale | Rockwell, Brinell, Vickers |
Data Display Output | Touch Screen Display Readout |
Standards Compliant | BSEN 6508, ISO 6508, ASTM E18, GB/T230 |
