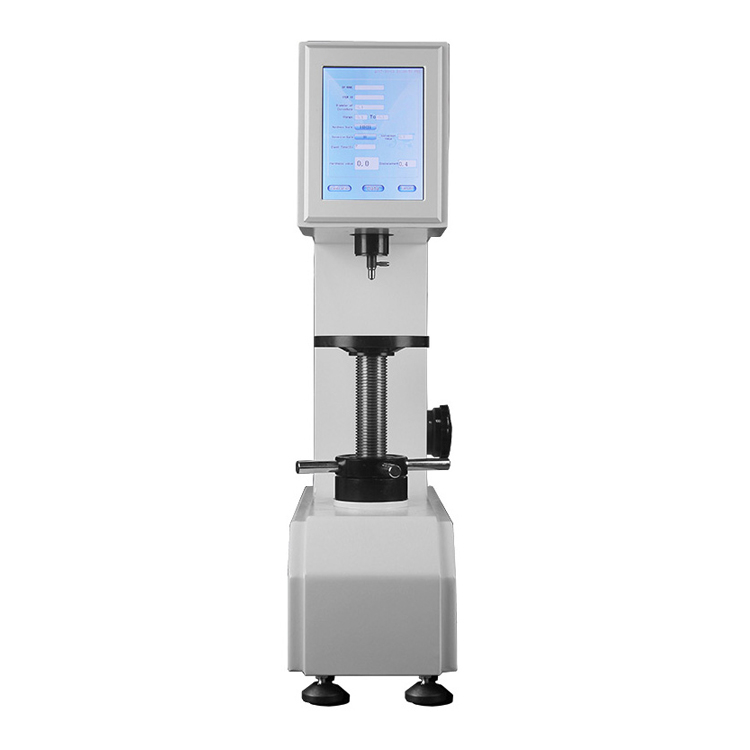

HR-150DTH Heightening Touch Screen Digital Display Rockwell Hardness Tester
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
HR-150DTH Heightening Touch Screen Digital Display Rockwell Hardness Tester uses the weights
electric loading, high precision sensor. Touch screen interface, easy to operate.
Strong data processing function, conversion of hardness value HR, HB, HV and so on, set the qualified
range, overrun alarm, can enter the testers, the sample names and so on.
Test results can be stored, processed and printed automatically.
2.Technical Parameter:
Model | HR-150DTH |
Initial Test Force | 10Kgf (98.07N) |
Main Test Force | 60Kgf (588N); 100Kgf (980N); 150Kgf (1471N) |
Hardness Value Resolution | 0.1 HR |
Test Force Error | ＜1.0% |
Dwell Time | 0~99 s |
Max. Height Of Sample | 400 mm |
Distance From Indenter To The Wall | 160 mm |
Conversion Scale | Superficial Rockwell, Brinell, Vickers |
