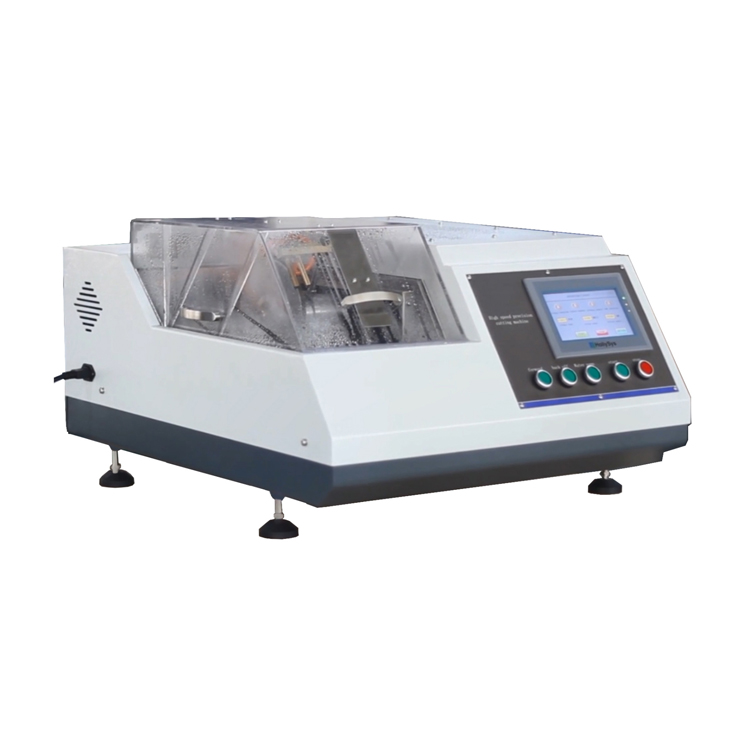

PQG-200XP Digital Display High Speed Automatic Precision Metallographic Sample Cutting Machine
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
PQG-200XP Digital Display High Speed Automatic Precision Metallographic Sample Cutting Machine
adopts man-machine interface and PLC control, intuitive interface, simple operation and convenient
parameter setting.
The spindle adopts closed loop control of servo motor and overload protection.
There is a circulating water cooling device.
Enclosed transparent shield and safety switch provide protection for the operator.
2.Technical Parameter:
Model | PQG-200XP |
Max. Cutting Diameter | Φ60 mm |
Cutting Disc Specification | Φ200*0.9*Φ32 mm |
Spindle Rotating Speed | 500~5000 r/min |
Feeding Speed | 0.01~3 mm/s |
Manual Feeding Speed | 0~15 mm/s |
Reverse Speed | 0~15 mm/s |
Cutting Mode Selection | Direct Cutting and Impact Cutting |
Impact Cutting Distance | 0.1~2 mm |
Cutting Stroke (Y Axle) | 200 mm |
Max. Length Of Worktable Clamping | 150 mm |
Max. Width Of Worktable Clamping | 200 mm |
