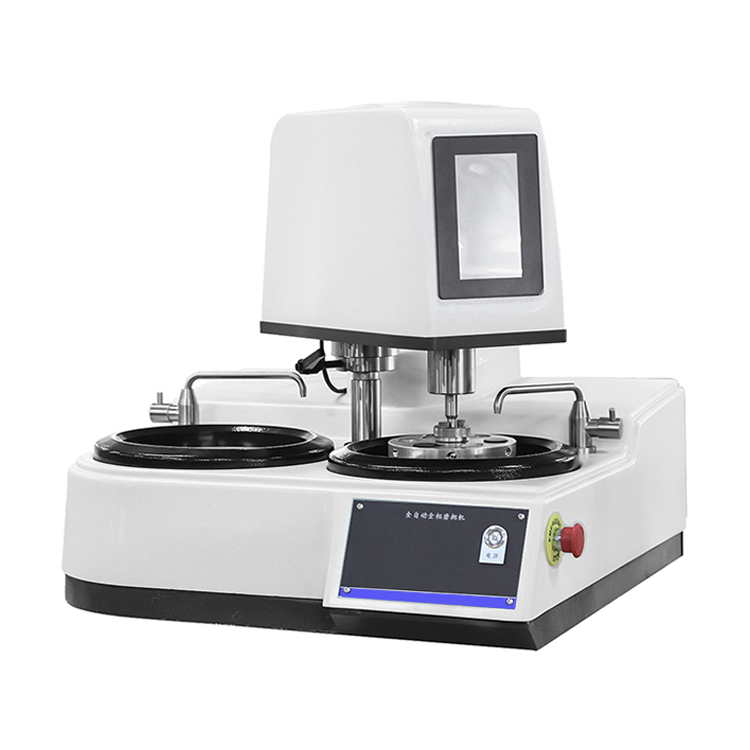

SDEKON MP-2000X Touch Screen Digital Display Automatic Metallographic Grinding Polishing Machine

1.Applications:SDEKON MP-2 Metallographic Specimen Grinding Polishing Machine is double grinding polishing discs, m

One Year Warranty

Prompt Delivery

1.Application:

is Center Loading Force Method, can fix six samples at one time to complete all grinding and polishing

processes to ensure the complete plane of each sample. Independent Control of Grinding and Polishing

Disc and Sample Plate: rotation speed, grinding and polishing time, rotation direction, water valve closing

and other grinding and polishing parameters.

Touch Screen Interface, convenient setting of grinding and polishing parameters, intuitive status display

and simple operation. Easily replace the magnetic anti-stick disk, you can complete the rough, fine grinding

and coarse, fine polishing of all kinds of samples, one disc is equivalent to N discs.

2.Technical Parameter:

Model	MP-2000X
Display and Operate Way	Touch Screen Digital Display
Working Disc Diameter	Φ254 mm (10 Inch) With Magnetic Conversion Disc System
Working Disc Rotating Speed	Stepless Speed: 100~1000 r/min
Grinding Polishing Head Rotating Speed	Stepless Speed: 0~100 r/min
Sample Preparation Time Range	0-9999 s
Sample Holding QTY	6 PCS
Sample Holder Specification	Φ30mm, 6 Holes
Pressurization Method	Central Pressurization
Central Pressurization Force	30-200 N
