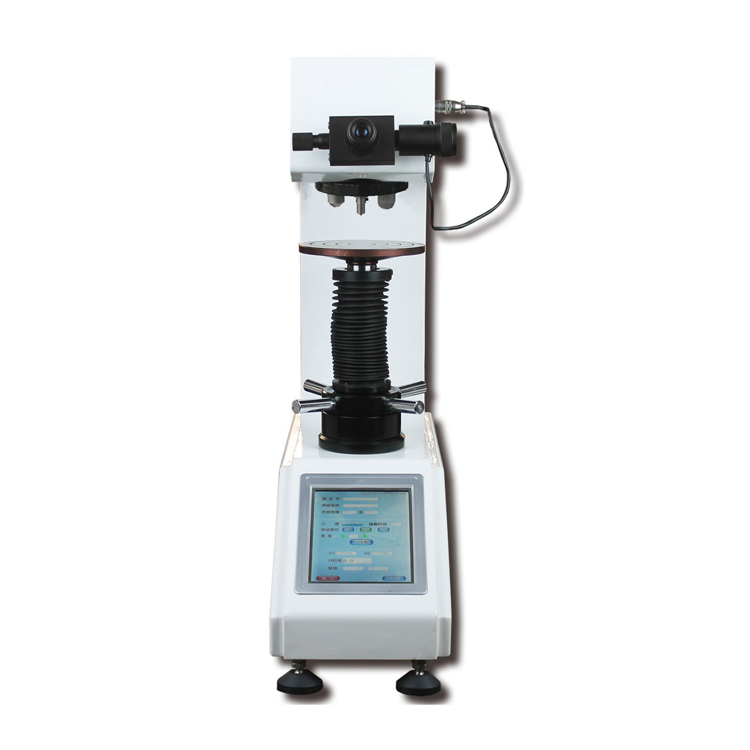

HV-30MDX Touch Screen Digital Display Automatic Turret Vickers Hardness Tester
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
HV-30MDX Touch Screen Digital Display Automatic Turret Vickers Hardness Tester is electronic loading,
high accuracy sensor, with special closed-loop control system, automatic compensation for each force.
It adopts touch screen digital display large interface, simple operation of menu structure.
With automatic turret structure, the indenter and objective can switch automatically.
Automatic positioning accuracy of the test point, automatic loading and automatic unloading.
All data is saved in the U disk in EXCEL format.
2.Technical Parameter:
Model | HV-30MDX |
Test Force | 0.3Kgf (2.94N); 0.5Kgf (4.9N); 1.0Kgf (9.8N); 2.0Kgf (19.6N); 3.0Kgf (29.4N); 5.0Kgf (49.0N); 10Kgf (98.0N); 20Kgf(196.0N); 30Kgf(294.0N) |
Hardness Measurement Range | 8~2900 HV |
Measurement Resolution | 0.01 um |
Test Force Loading Method | Automatic (Loading, Dwell, Unloading) |
Max. Height Of Sample | 180 mm |
Distance From Indenter To The Wall | 160 mm |
Dwell Time | 1~99 s |
Microscope Magnification | 100X, 200X |
